Wiring Harness: Overview

To remove the wiring harness from the clip in the engine room, pry up the hook of the clip using a flathead screwdriver.

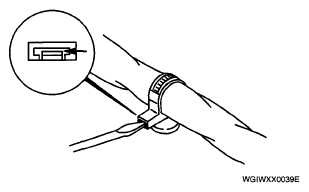

Fig 1: Caution For Removing Wiring Harness
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not remove the harness protective tape. Otherwise, the wires could rub against the body, which could result in water penetration and electrical shorting.

  Fig 2: Caution For Removing Harness Protective Tape
  Courtesy of MAZDA MOTORS CORP.
