Selector Lever Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the selector lever component connector.
  5. Verify that the continuity is as indicated in the table.
    • If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION ).
      Fig 1: Identifying Selector Lever Connector Terminal
      G04956143Courtesy of MAZDA MOTORS CORP.

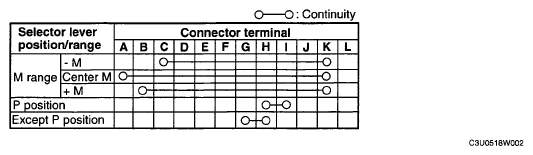

      Fig 2: Selector Lever Continuity Chart
      G04956148Courtesy of MAZDA MOTORS CORP.
