Shift Cable And Select Cable Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the both shift cable end and select cable end using a fastener remover.

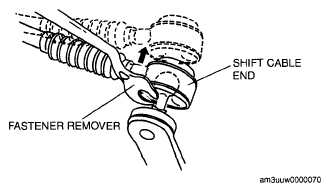

    Fig 1: Removing Shift Cable End And Select Cable End Using Fastener Remover
    G04955879Courtesy of MAZDA MOTORS CORP.
