Manual Transaxle Removal/Installation [G35M-R]: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the following parts:
1. Battery and battery tray
  (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
2. Air cleaner component
  (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [LF, L3] .)
3. Exhaust manifold insulator
4. Wheels, tires and splash shields
5. Undercover
6. Starter
  (See STARTER REMOVAL/INSTALLATION [LF, L3] .)
Drain the transaxle oil into a suitable container.
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the specified amount of specified transaxle oil.
NOTE:
- If the transaxle is overhauled, perform the "INSPECTION AFTER TRANSAXLE INSTALLATION [G35M-R] " and verify that there is no abnormality.
  (See INSPECTION AFTER TRANSAXLE INSTALLATION [G35M-R] ).

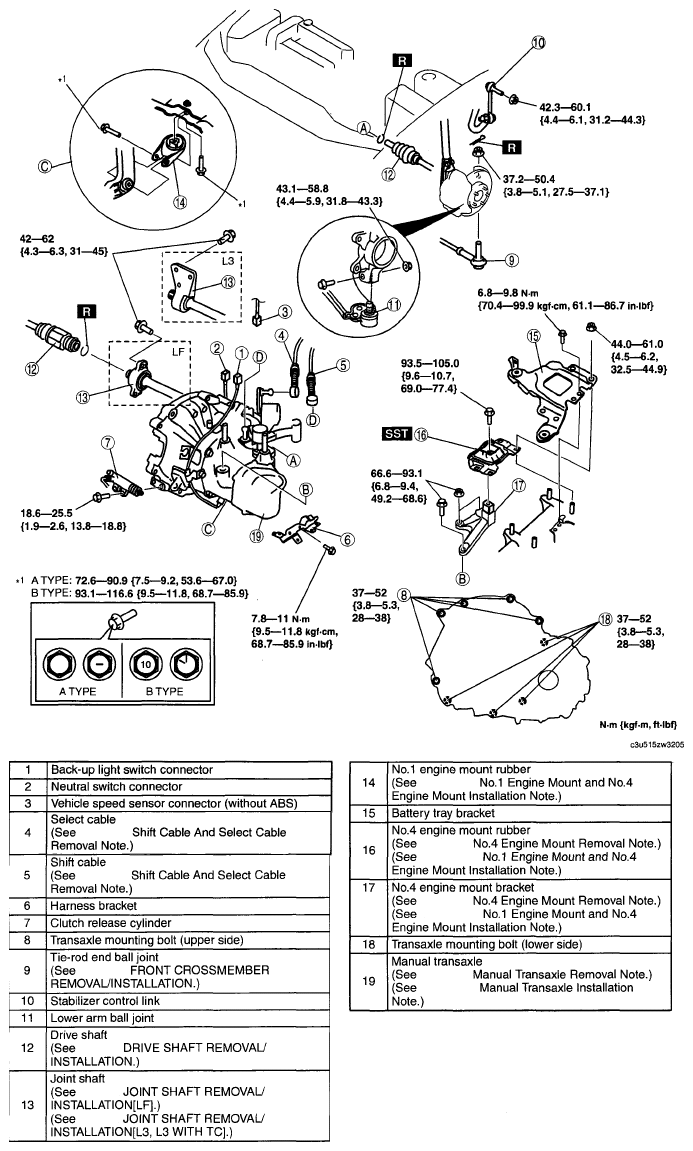

  Fig 1: Transaxle Replacement Components With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
