Wheel Hub Component Removal/Installation: Notes
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

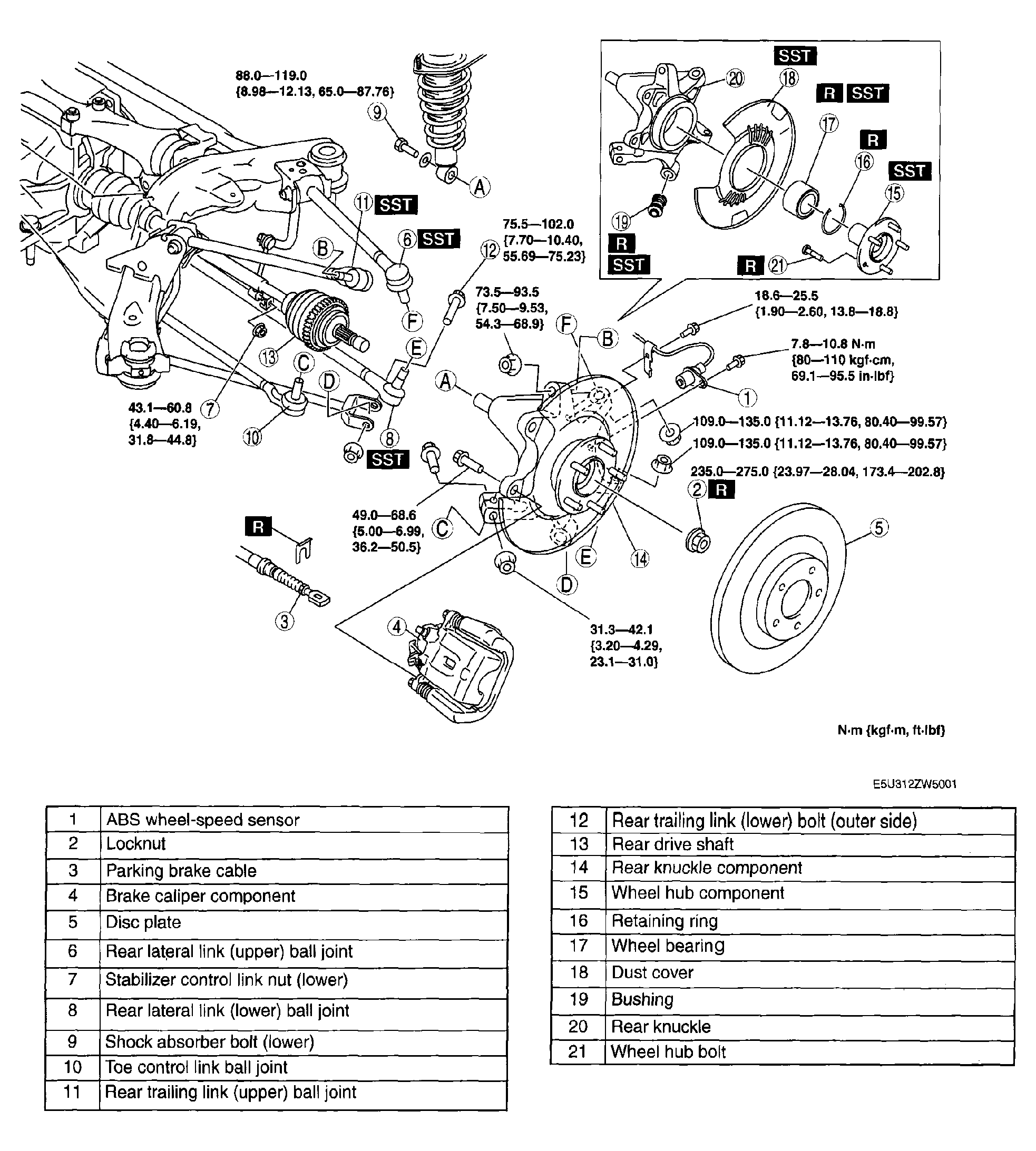

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
- After installation, inspect rear wheel alignment. (See REAR WHEEL ALIGNMENT .)
