Roll Pin Disassembly Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tap the roll pin out from the direction shown in Fig 1 using a pin punch.

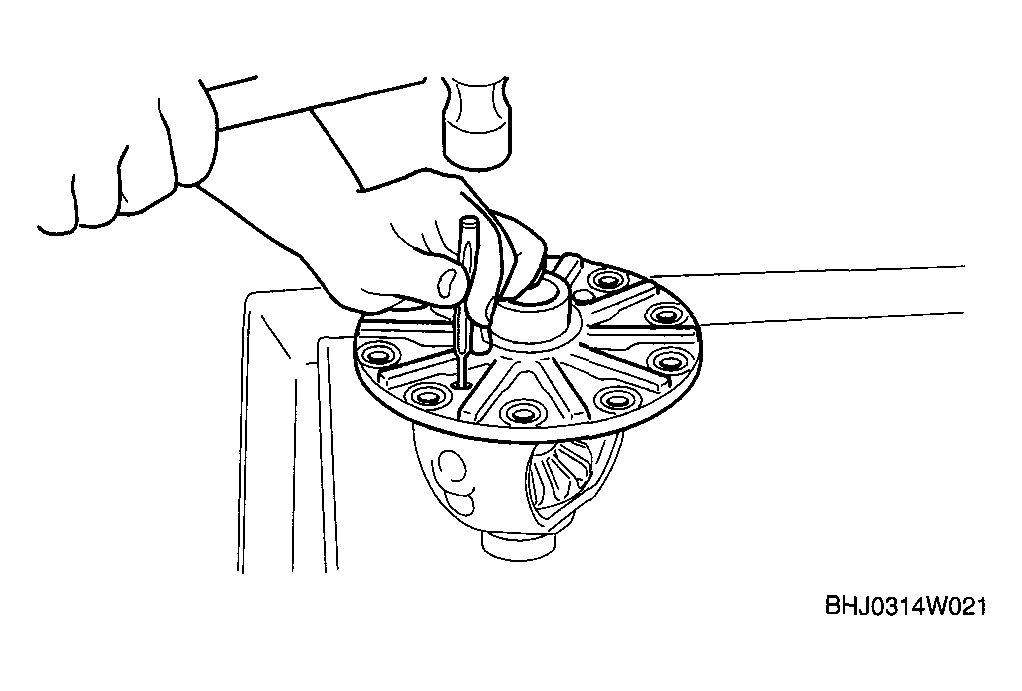

    Fig 1: Tapping Roll Pin Out Using Pin Punch
    G04318263Courtesy of MAZDA MOTORS CORP.
