Rear Bearing Assembly Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Install the spacer with the chamfer on the gear side.
  1. Assemble the spacer selected in the pinion height adjustment to the drive pinion.
  2. Press the drive pinion into the rear bearing using the SSTs  and a press.

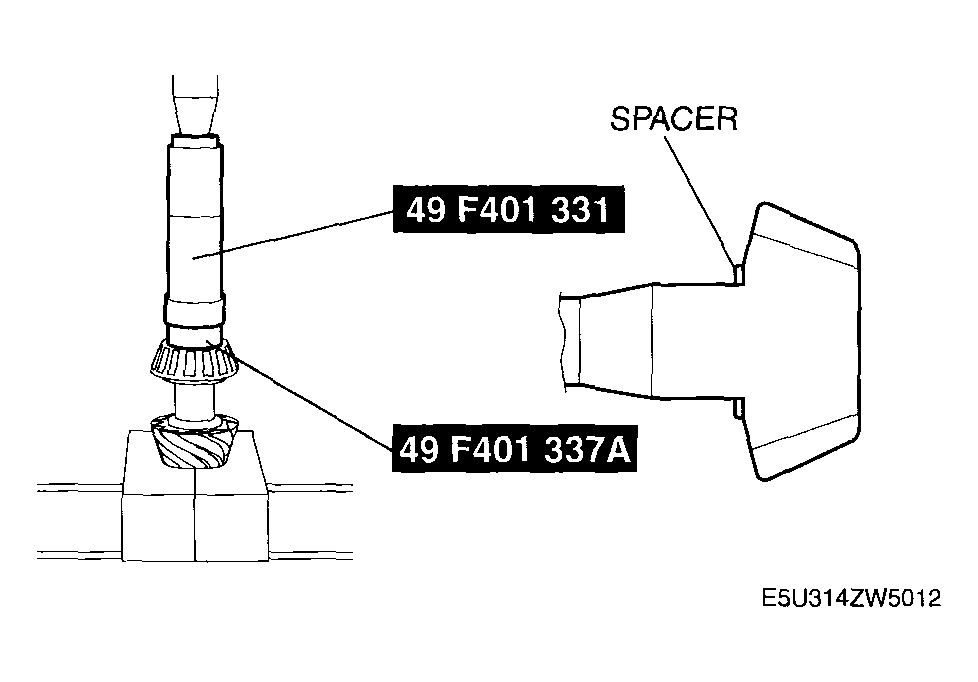

    Fig 1: Pressing Drive Pinion Into Rear Bearing Using SSTs & Press
    G04318281Courtesy of MAZDA MOTORS CORP.
