Brake Pipe Removal Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place an alignment mark on the brake pipe and dual proportioning valve.

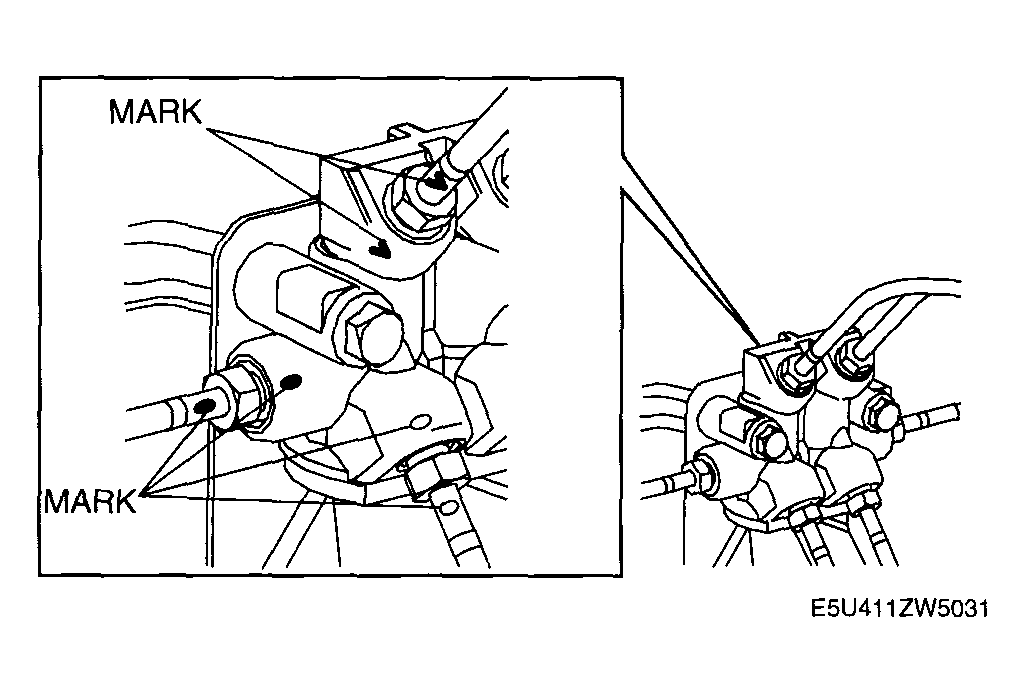

    Fig 1: Placing Alignment Mark On Brake Pipe & Dual Proportioning Valve
    G04318382Courtesy of MAZDA MOTORS CORP.
