Control System Device And Control Relationship Chart [L3 With TC]

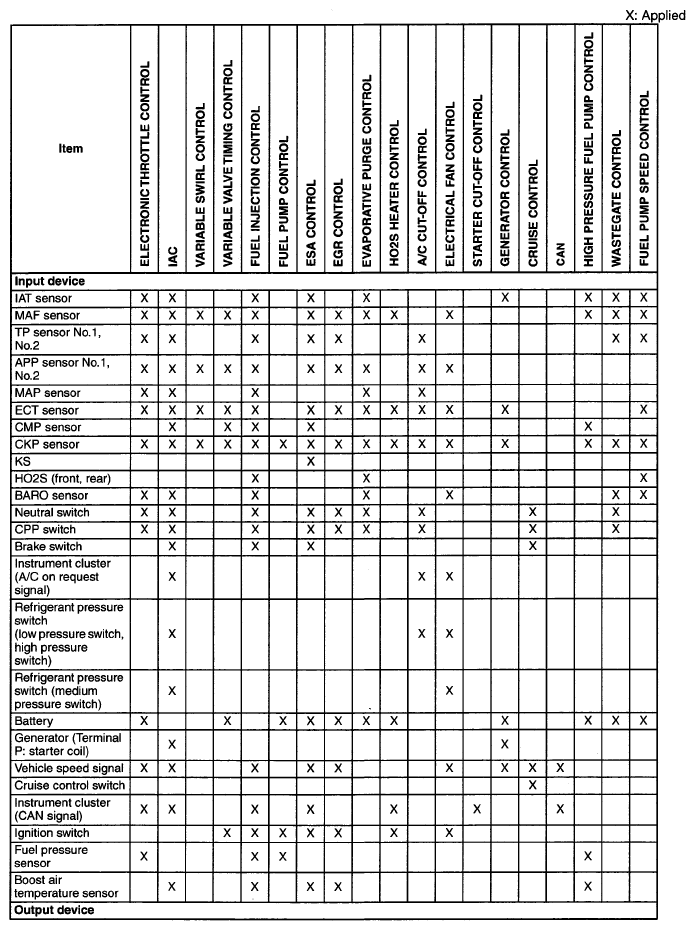

Fig 1: Control System Device And Control Relationship Chart [L3 With TC]
G04954452Courtesy of MAZDA MOTORS CORP.

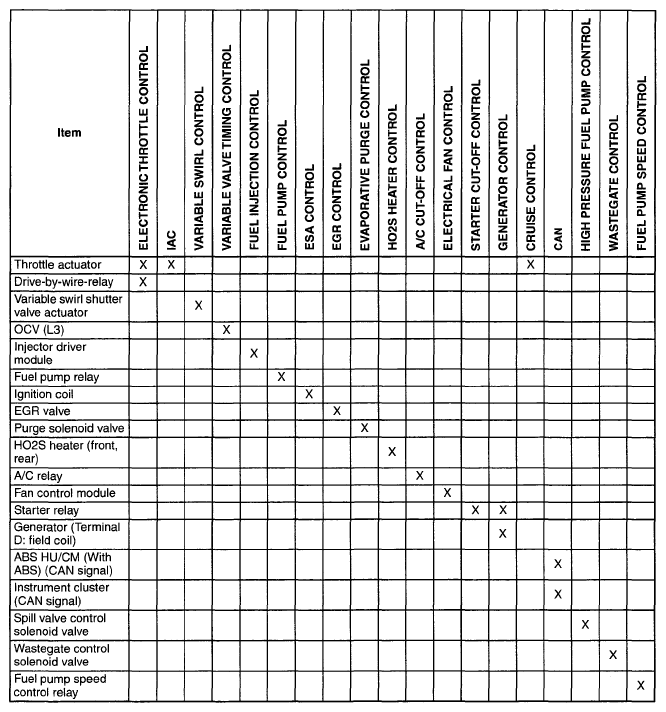

Fig 2: Control System Device And Control Relationship Chart [L3 With TC]
G04954453Courtesy of MAZDA MOTORS CORP.
