Check Code Table

CHECK CODE CHART

Check code	Check item	Related items
08	TNS relay	Lights-on reminder warning alarm Each illumination light
12	Speedometer	Speedometer
13	Tachometer	Tachometer
14	Buzzer	Buzzer
16	Fuel-level warning light	Fuel-level warning light
22	Fuel gauge sender unit	Fuel gauge
23	Fuel gauge	Fuel gauge
25	Water temperature gauge	Water temperature gauge
26	Odometer/tripmeter (LCD) Warning and indicator light	Odometer/tripmeter (LCD) Warning and indicator light
31	Key reminder switch	Key reminder warning alarm
32	Indicator buzzer	Indicator buzzer
55	Dimmer switch	Panel light control

NOTE:

Check codes which are not listed may be indicated, but they cannot be inspected.
The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
If a speed signal is input to the instrument cluster (the wheels are rotated) while a code other than check code 50 or 51 is displayed, the input/output check mode will be cancelled.
The check codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 s or more .

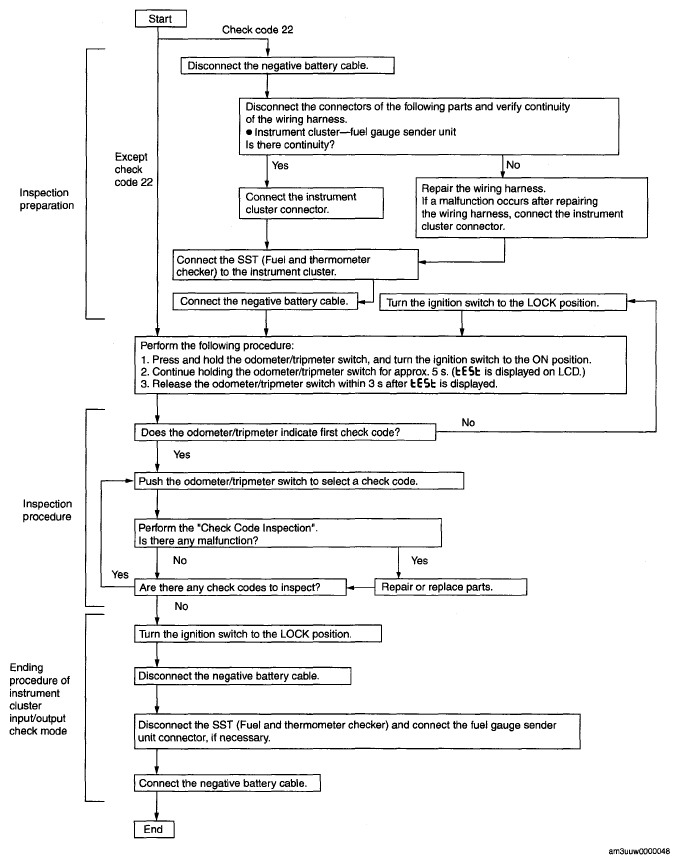

Fig 1: Instrument Cluster Input/Output Check Flow Chart

Courtesy of MAZDA MOTORS CORP.
