Electrical Component Locator: Grounds

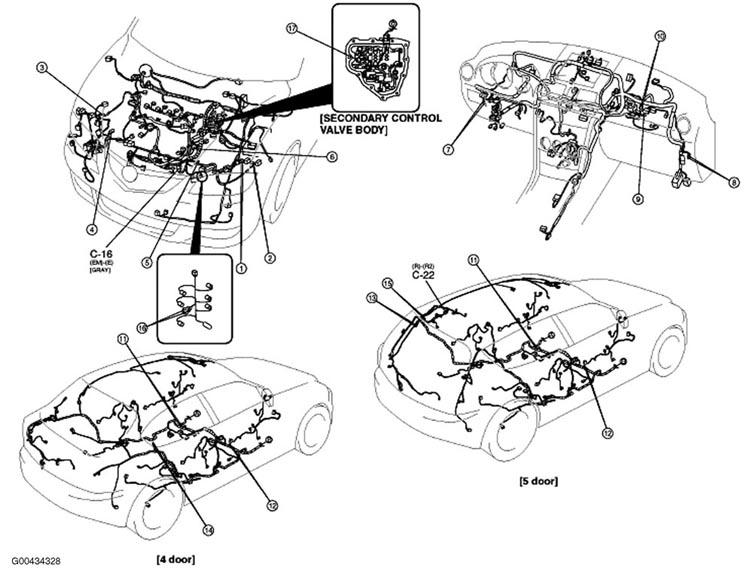

GROUNDS LOCATION
| Component | Location |
|---|---|
| G1 | Behind left headlight. See Figure. |
| G2 | Behind left headlight. See Figure. |
| G3 | Behind right headlight. See Figure. |
| G4 | Behind right headlight. See Figure. |

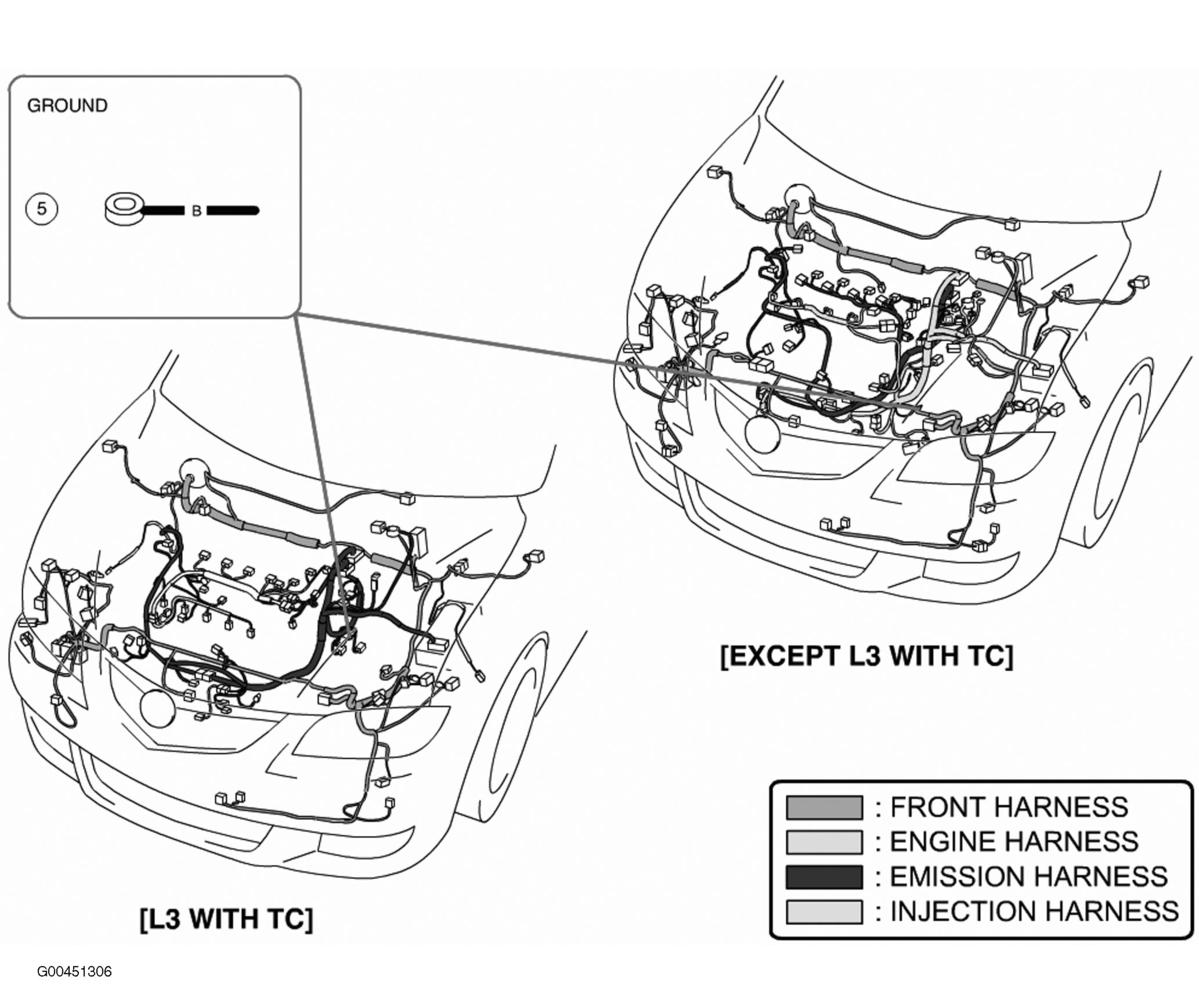

| G5 | Left side of engine compartment. See Figure. |
| G6 | Left rear of engine. See Figure. |
| G7 | Behind left side of dash. See Figure. |
| G8 | Behind right end of dash. See Figure. |
| G9 | Behind right side of dash. See Figure. |
| G10 | Behind right side of dash. See Figure. |
| G11 | Below driver's seat. See Figure. |
| G12 | Below center console. See Figure. |
| G13 | Top left side of liftgate. See Figure. |
| G14 | Behind rear seat. See Figure. |
| G15 | Top of left "C" pillar. See Figure. |
| G16 | At transaxle range switch. See Figure. |
| G17 | In secondary control valve body. See Figure. |
