Battery Cover Installation Note

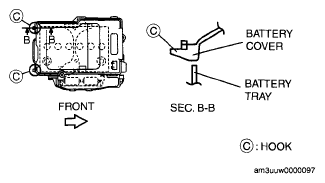

  1. Install with battery cover hooks C aligned with the battery tray holes at two points.
    Fig 1: Identifying Battery Cover And Battery Tray
    G04955104Courtesy of MAZDA MOTORS CORP.

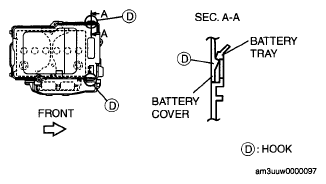

  2. Set the battery cover to battery tray hooks D at two points.
    Fig 2: Identifying Battery Cover And Battery Tray
    G04955105Courtesy of MAZDA MOTORS CORP.
