Rear Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove the under cover (rear).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

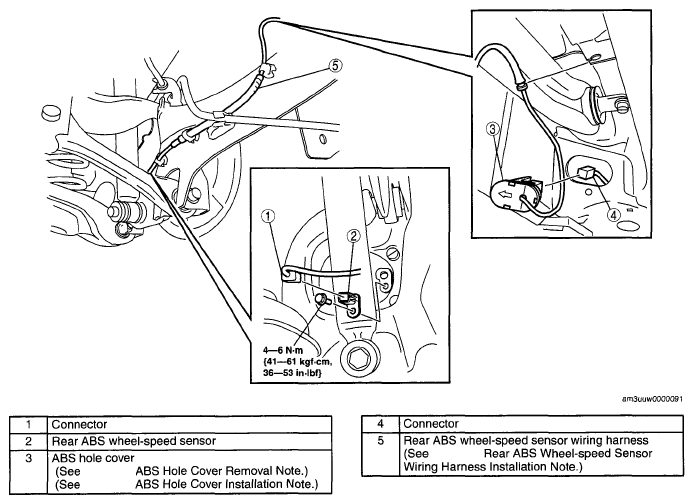

    Fig 1: Rear ABS Wheel-Speed Sensor Replacement Components With Torque Specifications
    G04955728Courtesy of MAZDA MOTORS CORP.
