Rear Door Quarter Glass Removal/Installation

  1. Disconnect the negative battery cable. (Vehicles with power window system)
  2. Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
  3. Remove the regulator handle. (Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL )
  4. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the rear door quarter glass.
  6. Install in the reverse order of removal.

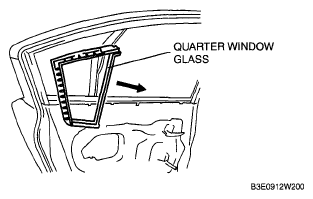

    Fig 1: Identifying Rear Door Quarter Glass
    G04956713Courtesy of MAZDA MOTORS CORP.
