Outer Mirror Garnish Removal

  1. Remove the mirror glass from the outer mirror.
  2. Pinch the clip ends using pincers and detach the clips by pushing them forward.
  3. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.

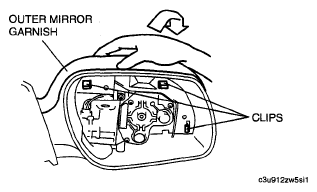

    Fig 1: Identifying Outer Mirror Garnish With Clip
    G04956779Courtesy of MAZDA MOTORS CORP.
