Trunk Lid Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Detach the trunk lid opener cable.
  3. Remove the bolts, then remove the trunk lid striker.
  4. Install in the reverse order of removal.
  5. Adjust the trunk lid. (See TRUNK LID ADJUSTMENT .)

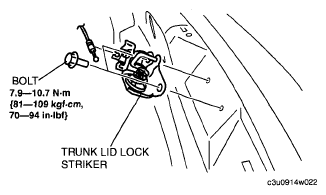

    Fig 1: Trunk Lid Lock Striker & Torque Specification
    G04956876Courtesy of MAZDA MOTORS CORP.
