Home >> Mazda >> 2008 >> 3 Mazdaspeed, 2.3 L >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Transmitter Id Code Registration

Transmitter Id Code Registration

NOTE:
  • When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
  • After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

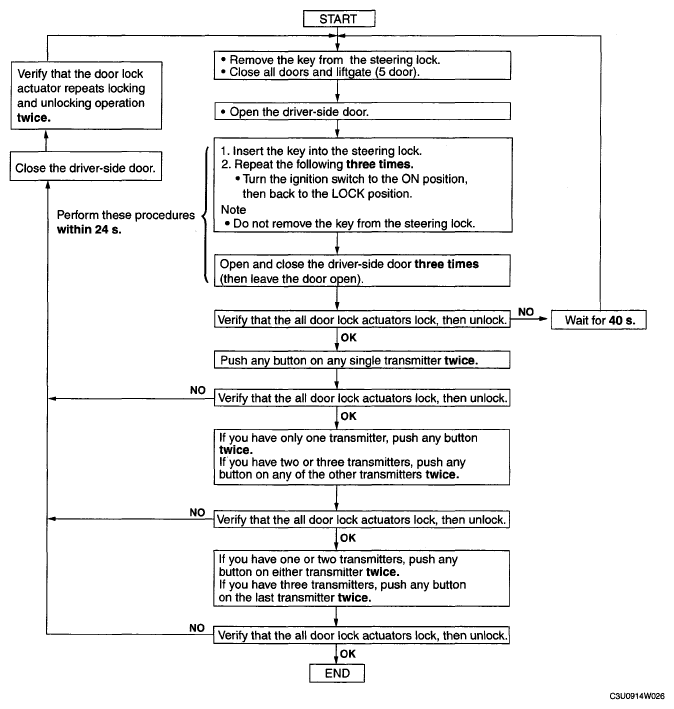

    Fig 1: Transmitter ID Code Registration Flow Chart
    G04956866Courtesy of MAZDA MOTORS CORP.
