Rear Door Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

Fig 1: Identifying Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the rear door latch switch terminals.
- If not as specified, replace the rear door latch and lock actuator.

  Fig 2: Front Door Latch Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

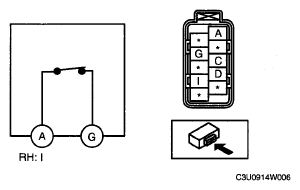

  Fig 3: Identifying Rear Door Latch Switch Connector Terminals With Circuit Diagram
  Courtesy of MAZDA MOTORS CORP.
