Keyless Entry System Wiring Diagram [Advanced Keyless System]

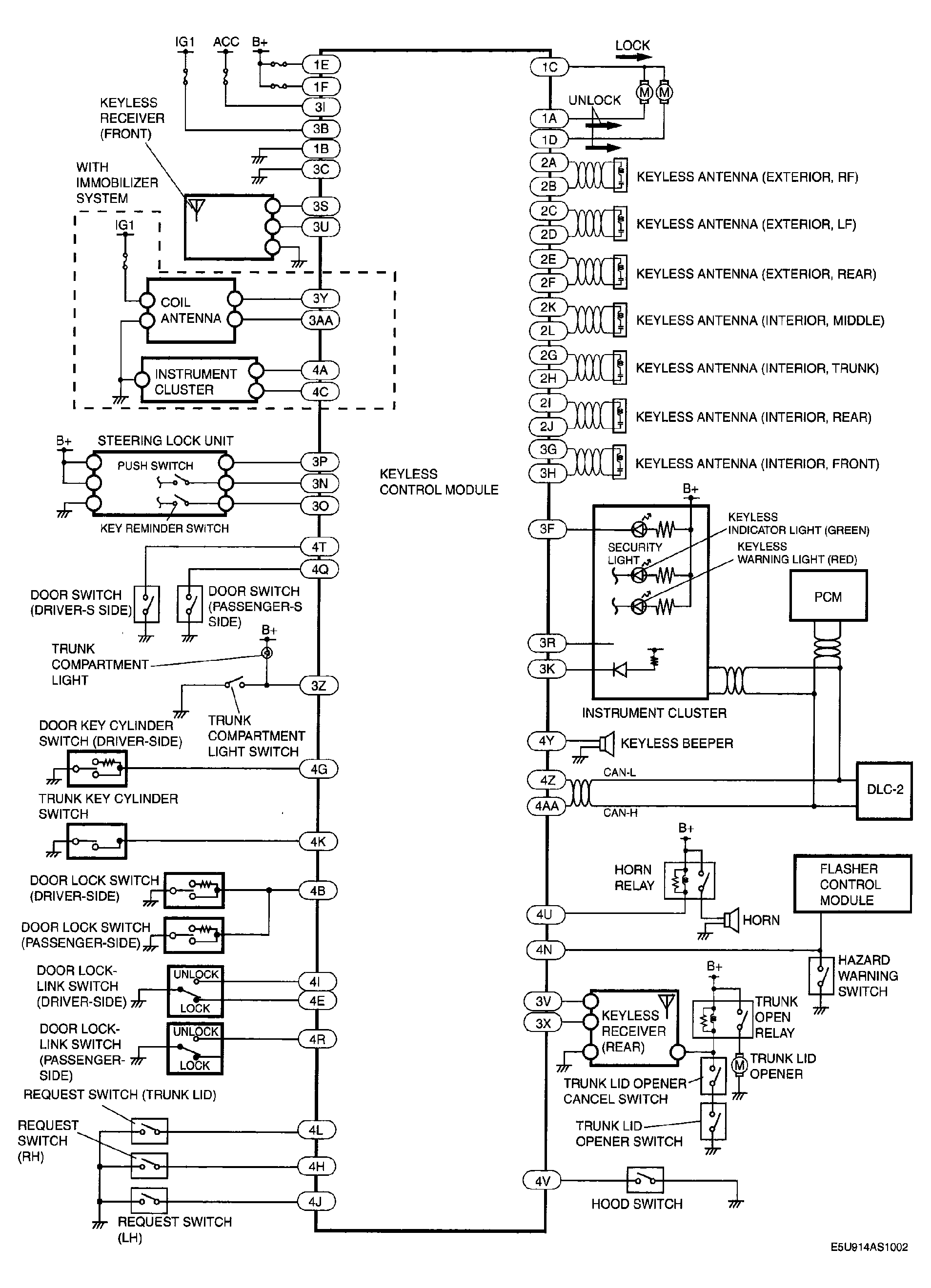

Fig 1: Keyless Entry System Wiring Diagram (Advanced Keyless System)

G04564191

Courtesy of MAZDA MOTORS CORP.
