Pulsation Damper Removal/Installation

  1. Remove the fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.
  4. Inspect all parts by performing the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE ).

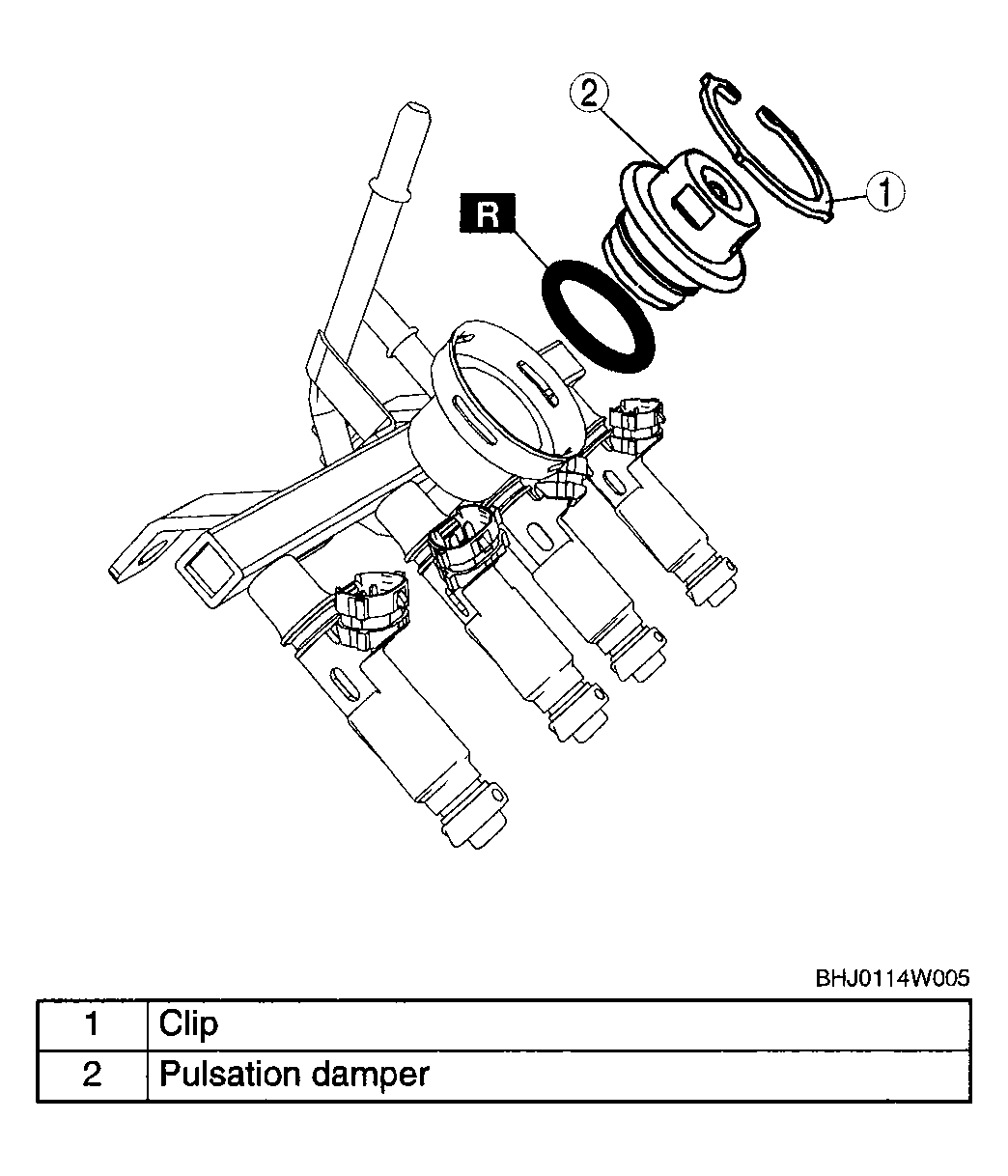

    Fig 1: Identifying Pulsation Damper
    G04562880Courtesy of MAZDA MOTORS CORP.
