Joint Hose Installation Note
Install the joint hose and clamps as shown in the figure.

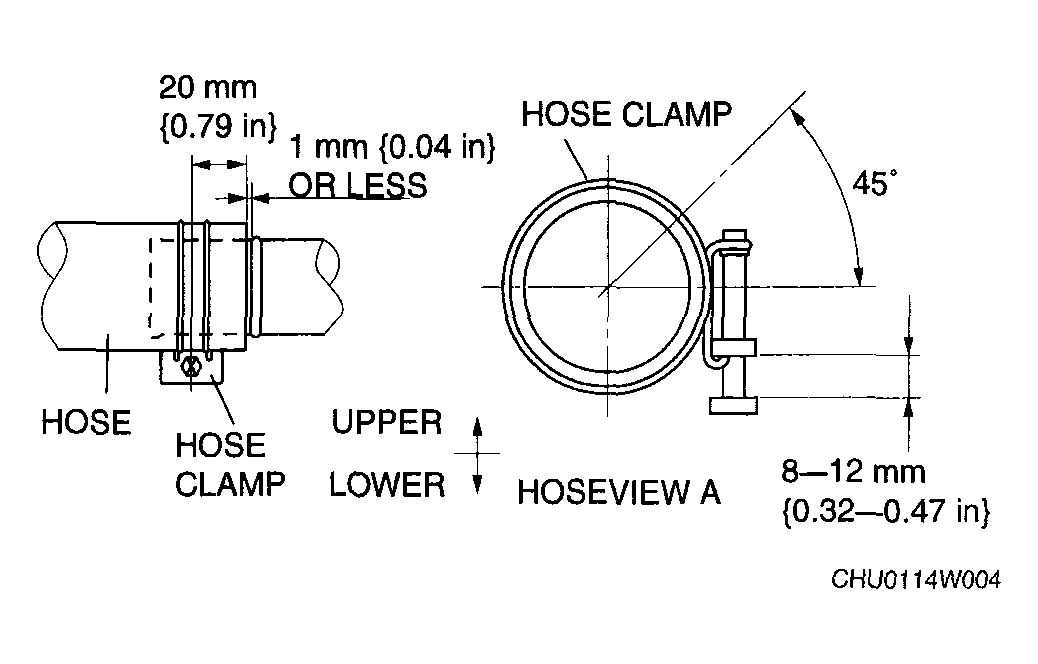

Fig 1: Installing Joint Hose & Clamps
Courtesy of MAZDA MOTORS CORP.
