Fuel Pump Resistor Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION )
  2. Remove the secondary air injection (AIR) pump. (See SECONDARY AIR INJECTION (AIR) PUMP REMOVAL/INSTALLATION )
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

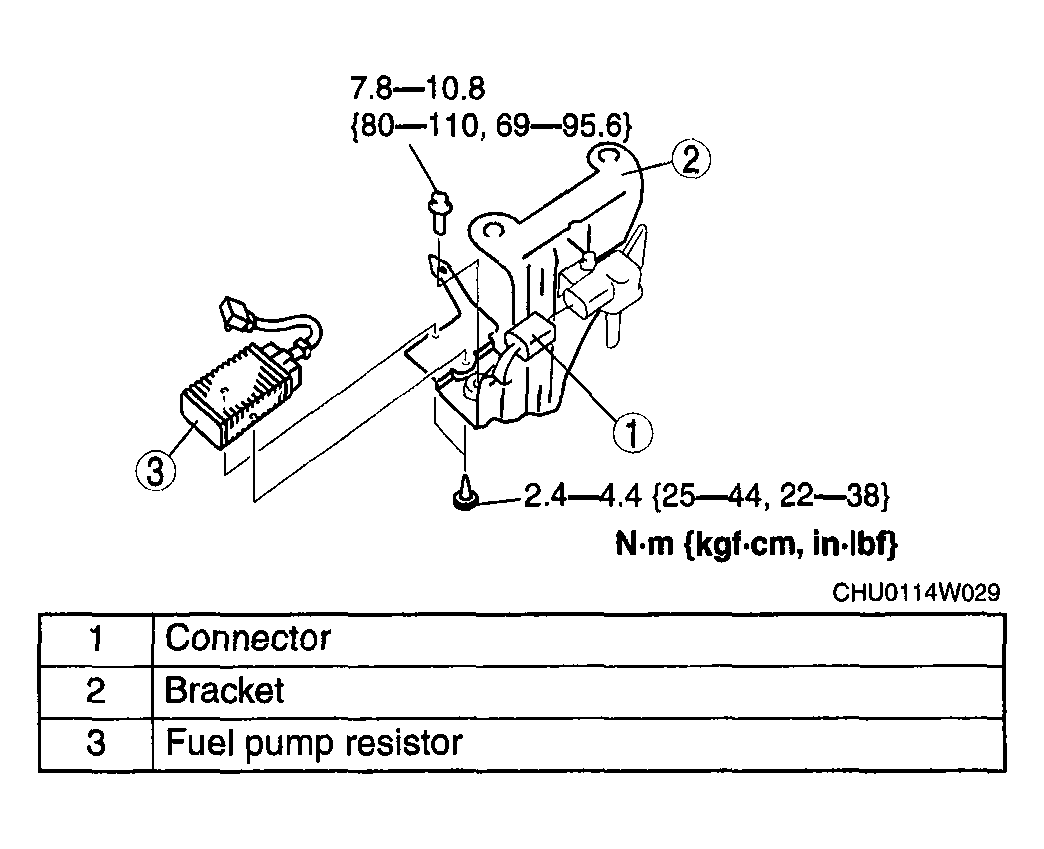

    Fig 1: Fuel Pump Resistor With Torque Specifications
    G04562844Courtesy of MAZDA MOTORS CORP.
