Eccentric shaft position sensor

Terminal connected: 2U (+)-Negative battery terminal
Oscilloscope setting: 2 V/DIV (Y): 5 ms/DIV (X), DC range
Measurement condition: Idling after warm-up (no load)

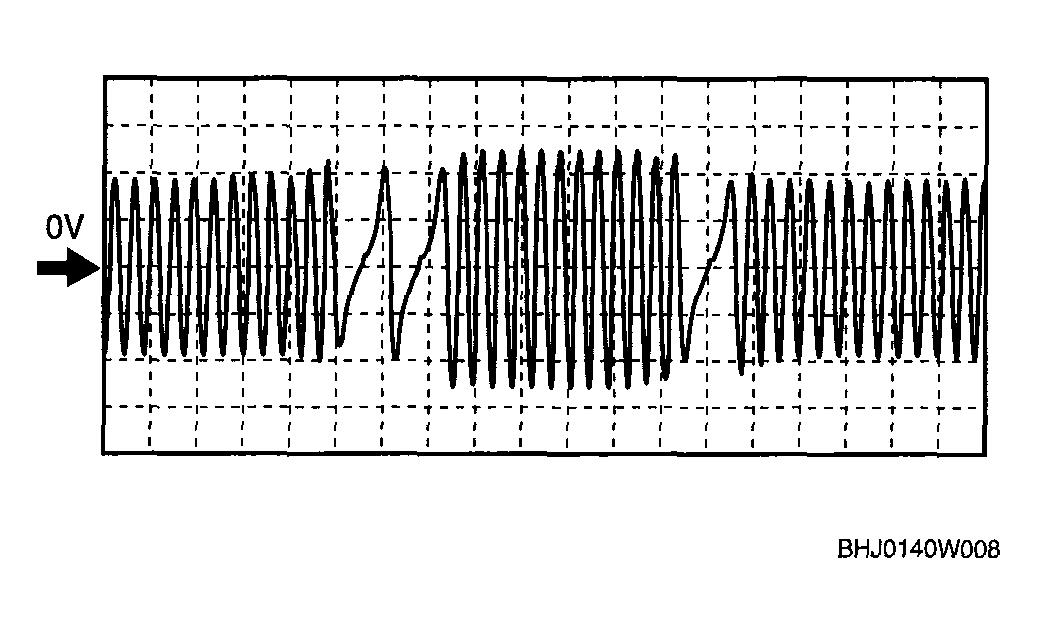

Fig 1: Eccentric Shaft Position Sensor Graph
Courtesy of MAZDA MOTORS CORP.
