ECT sensor characteristics graph (reference)

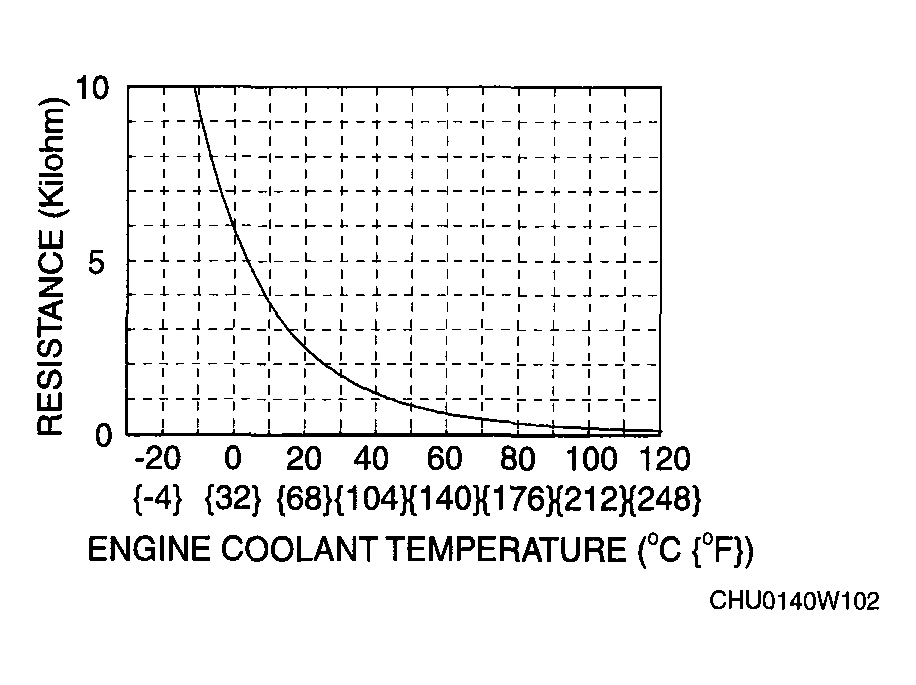

Fig 1: ECT Sensor Characteristics Graph

G04563005

Courtesy of MAZDA MOTORS CORP.
