Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

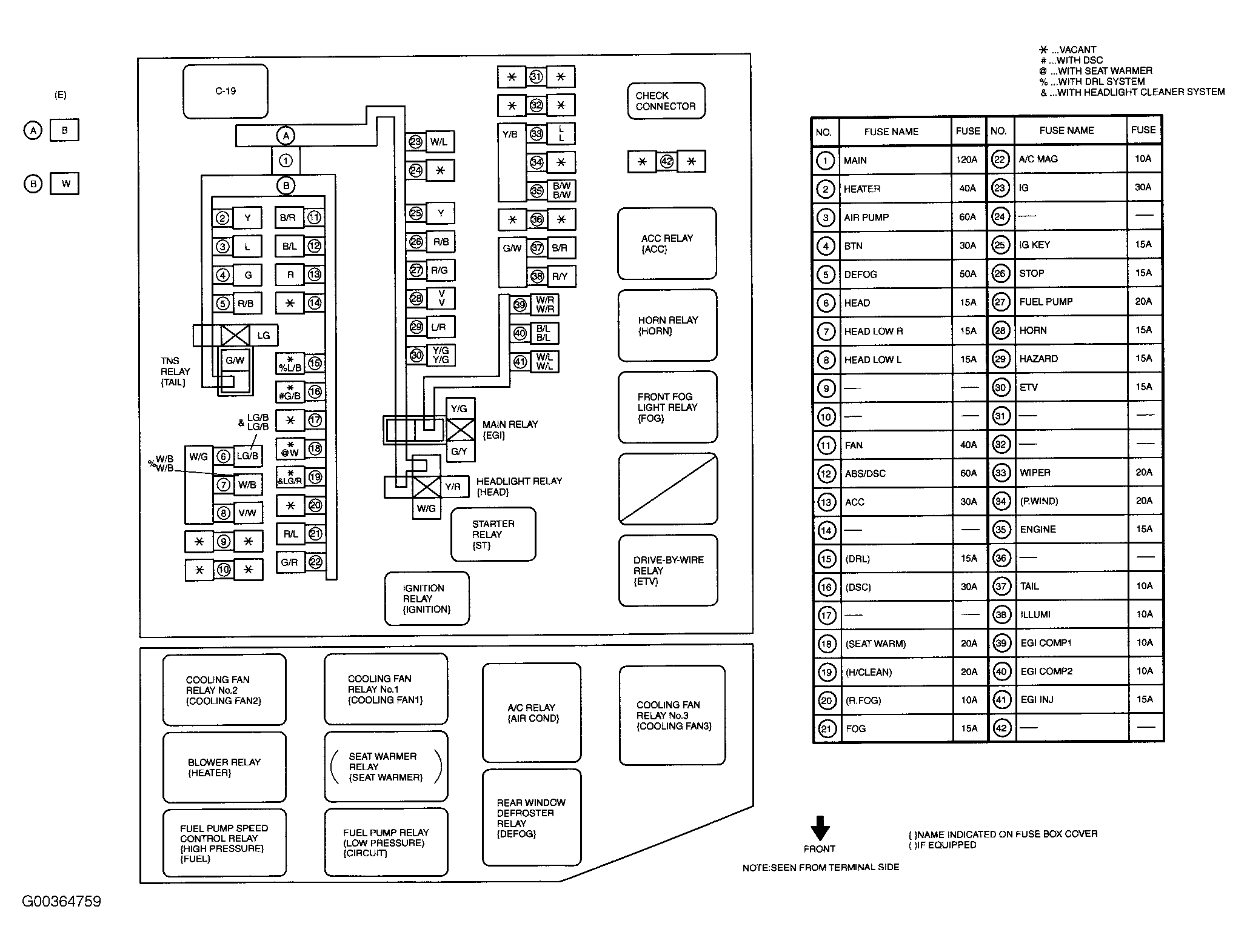

Fig 1: Relay & Main Fuse Block
Courtesy of MAZDA MOTORS CORP.
Fig 2: Data Link
Courtesy of MAZDA MOTORS CORP.
Fig 3: Trunk Lid Opener
Courtesy of MAZDA MOTORS CORP.
Fig 4: Immobilizer System
Courtesy of MAZDA MOTORS CORP.
Fig 5: Vehicle Grounds
Courtesy of MAZDA MOTORS CORP.
Fig 6: Vehicle Grounds
Courtesy of MAZDA MOTORS CORP.
Fig 7: Air Bags
Courtesy of MAZDA MOTORS CORP.
Fig 8: Air Bags
Courtesy of MAZDA MOTORS CORP.
Fig 9: Air Bags
Courtesy of MAZDA MOTORS CORP.
Fig 10: Seat Warmer
Courtesy of MAZDA MOTORS CORP.

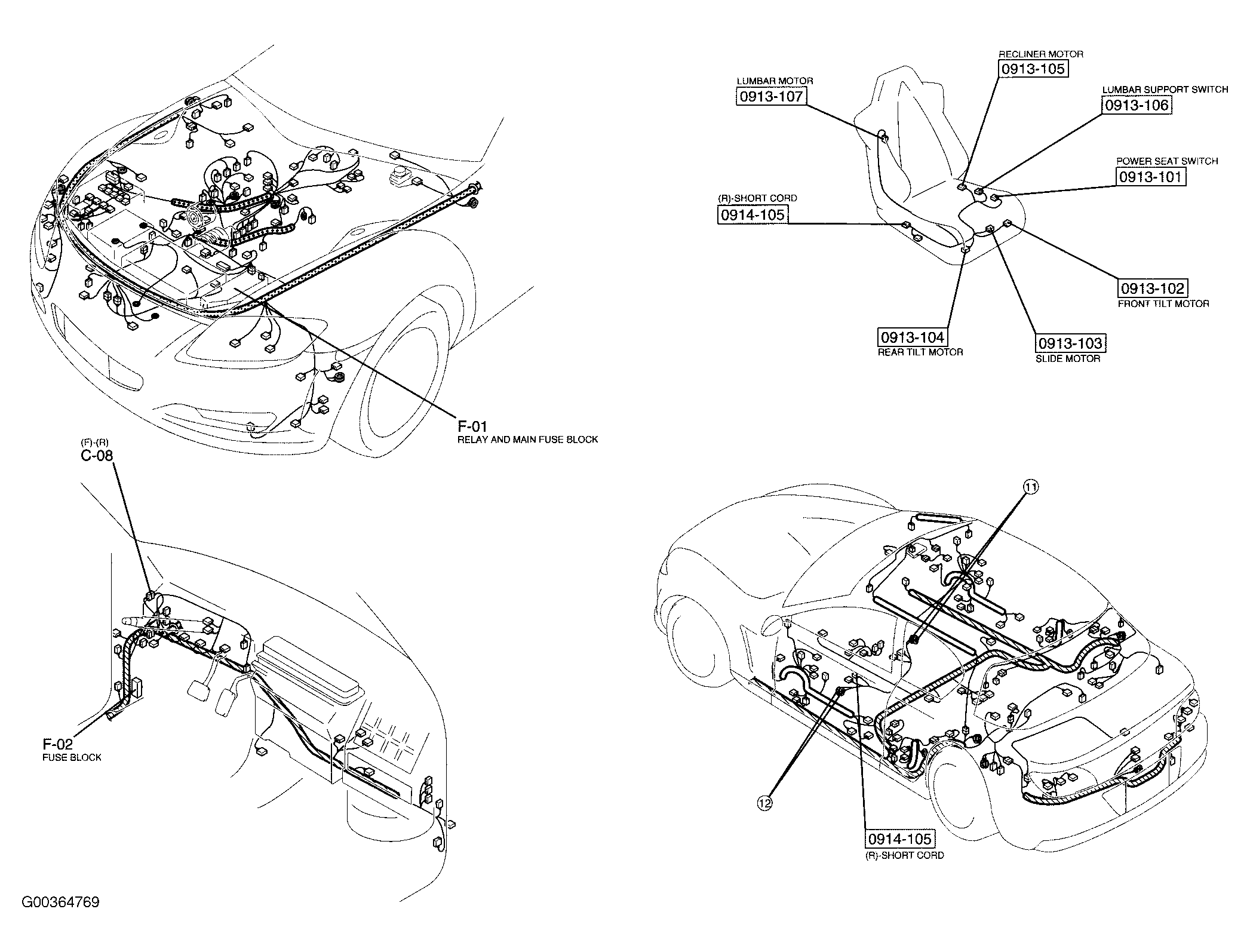

Fig 11: Power Seat
Courtesy of MAZDA MOTORS CORP.
Fig 12: Dynamic Stability Control System
Courtesy of MAZDA MOTORS CORP.
Fig 13: Dynamic Stability Control System
Courtesy of MAZDA MOTORS CORP.
Fig 14: EPS System
Courtesy of MAZDA MOTORS CORP.
Fig 15: Sun Roof
Courtesy of MAZDA MOTORS CORP.
Fig 16: Power Mirrors
Courtesy of MAZDA MOTORS CORP.
Fig 17: Keyless Entry System
Courtesy of MAZDA MOTORS CORP.
Fig 18: Keyless Entry System
Courtesy of MAZDA MOTORS CORP.
Fig 19: Power Windows
Courtesy of MAZDA MOTORS CORP.
Fig 20: Navigation System
Courtesy of MAZDA MOTORS CORP.
Fig 21: Navigation System
Courtesy of MAZDA MOTORS CORP.
Fig 22: Navigation System
Courtesy of MAZDA MOTORS CORP.
Fig 23: Rear Defrost System
Courtesy of MAZDA MOTORS CORP.

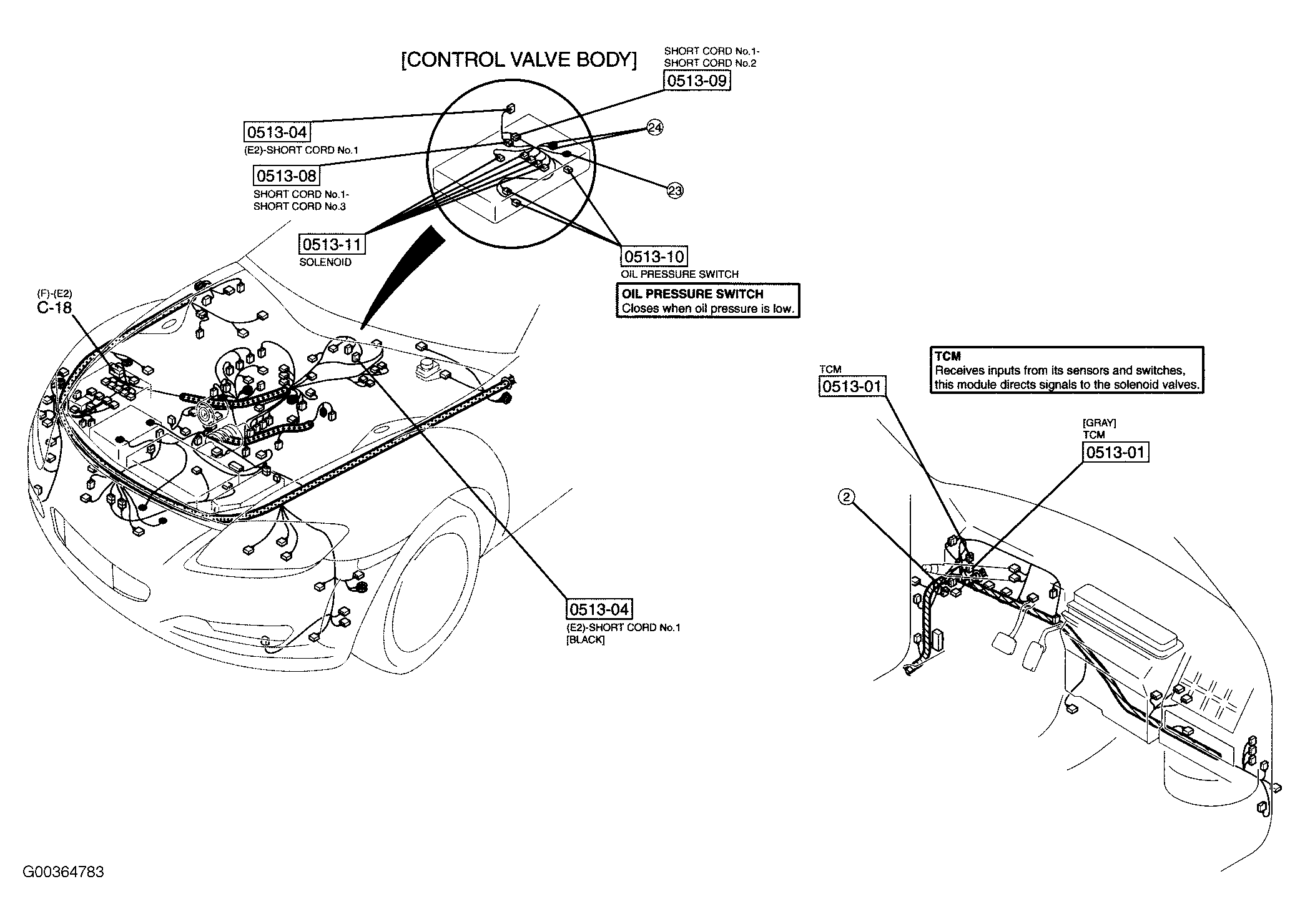

Fig 24: Automatic Transmission Control System
Courtesy of MAZDA MOTORS CORP.
Fig 25: Automatic Transmission Control System
Courtesy of MAZDA MOTORS CORP.
Fig 26: Air Conditioning System
Courtesy of MAZDA MOTORS CORP.
Fig 27: Heater & A/C System
Courtesy of MAZDA MOTORS CORP.
Fig 28: Heater & A/C System
Courtesy of MAZDA MOTORS CORP.
Fig 29: Horn & Brake Lights
Courtesy of MAZDA MOTORS CORP.
Fig 30: Back-Up Lights
Courtesy of MAZDA MOTORS CORP.
Fig 31: Turn & Hazard Lights
Courtesy of MAZDA MOTORS CORP.

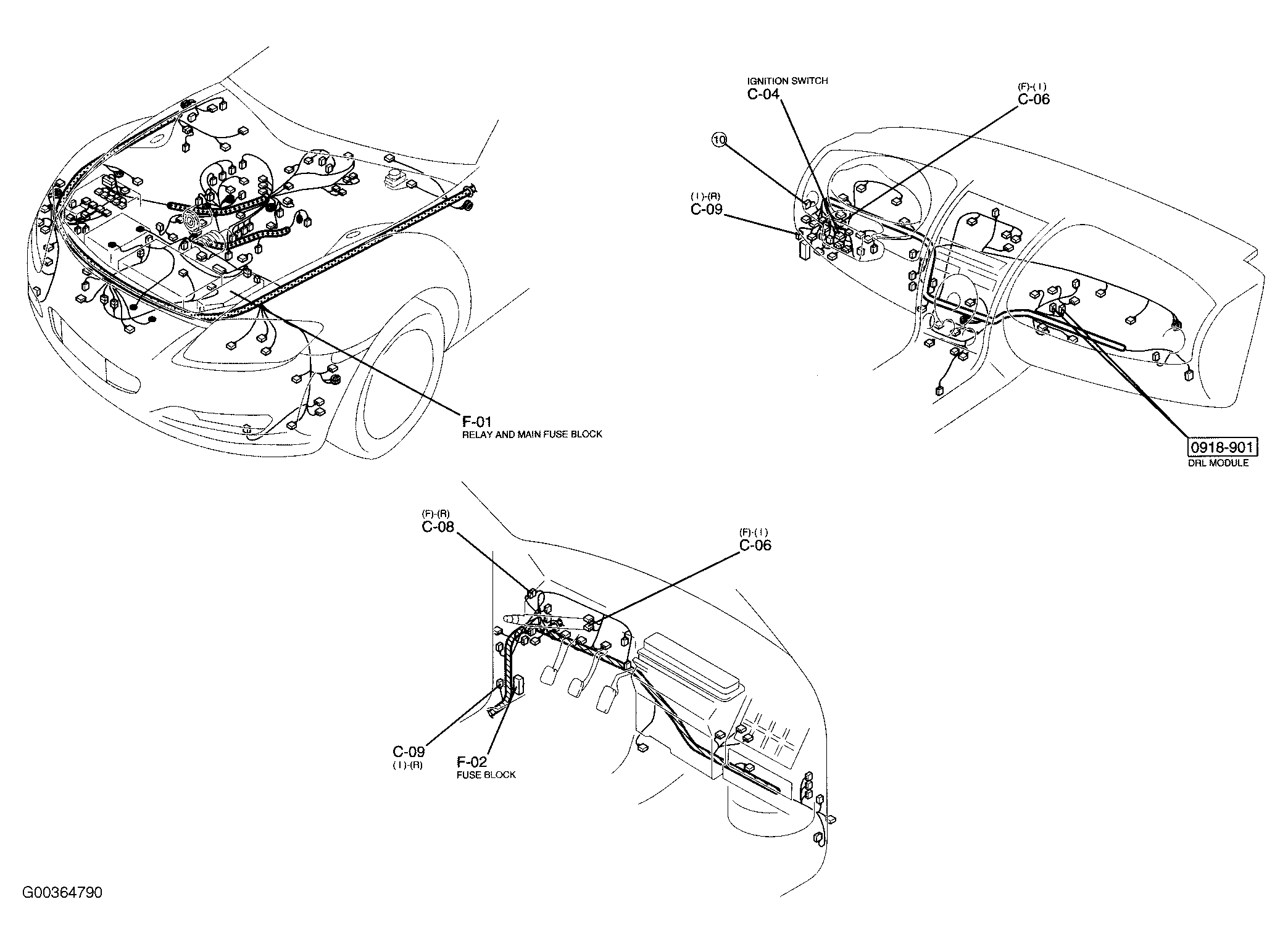

Fig 32: Daytime Running Lights
Courtesy of MAZDA MOTORS CORP.
Fig 33: Headlight Cleaning System
Courtesy of MAZDA MOTORS CORP.
Fig 34: Headlight Leveling System
Courtesy of MAZDA MOTORS CORP.
Fig 35: Wiper/Washer System
Courtesy of MAZDA MOTORS CORP.
Fig 36: Tire Pressure Monitoring System
Courtesy of MAZDA MOTORS CORP.
Fig 37: Instrument System
Courtesy of MAZDA MOTORS CORP.
Fig 38: Instrument System
Courtesy of MAZDA MOTORS CORP.
Fig 39: Instrument System
Courtesy of MAZDA MOTORS CORP.
Fig 40: Instrument System
Courtesy of MAZDA MOTORS CORP.
Fig 41: Cooling Fans
Courtesy of MAZDA MOTORS CORP.
Fig 42: Fuel Control System
Courtesy of MAZDA MOTORS CORP.

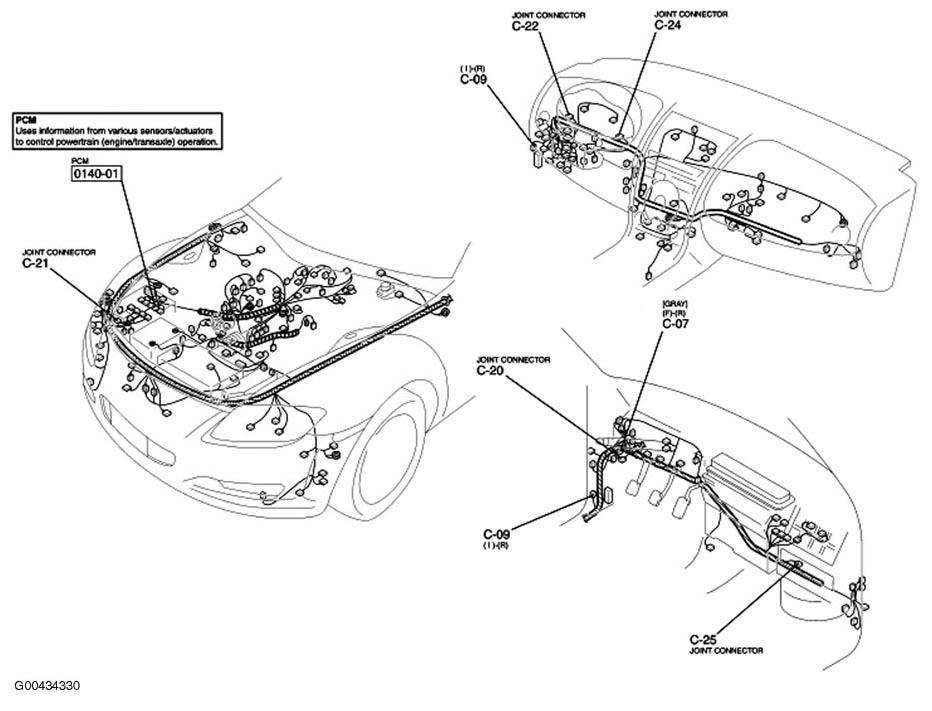

Fig 43: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 44: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 45: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 46: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 47: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 48: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 49: Starting & Charging System
Courtesy of MAZDA MOTORS CORP.
Fig 50: Engine Controls
Courtesy of MAZDA MOTORS CORP.
Fig 51: Keyless Entry System
Courtesy of MAZDA MOTORS CORP.
Fig 52: Keyless Entry System
Courtesy of MAZDA MOTORS CORP.
Fig 53: Right Side Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 54: Left Front Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 55: Under Right Front Seat
Courtesy of MAZDA MOTORS CORP.
Fig 56: Front Passenger's Seat
Courtesy of MAZDA MOTORS CORP.
Fig 57: Rear Of Engine Compartment
Courtesy of MAZDA MOTORS CORP.
Fig 58: Left End Of Dash
Courtesy of MAZDA MOTORS CORP.
Fig 59: Transmission Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Fig 60: Transmission Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Fig 61: Transmission Control Valve Body
Courtesy of MAZDA MOTORS CORP.
Fig 62: Rear Of Vehicle
Courtesy of MAZDA MOTORS CORP.
Fig 63: Left Kick Panel
Courtesy of MAZDA MOTORS CORP.
