Connector Installation Note

  1. After connecting the connector, rotate the lock lever in the direction of the arrow to install the DSC HU/CM connector.

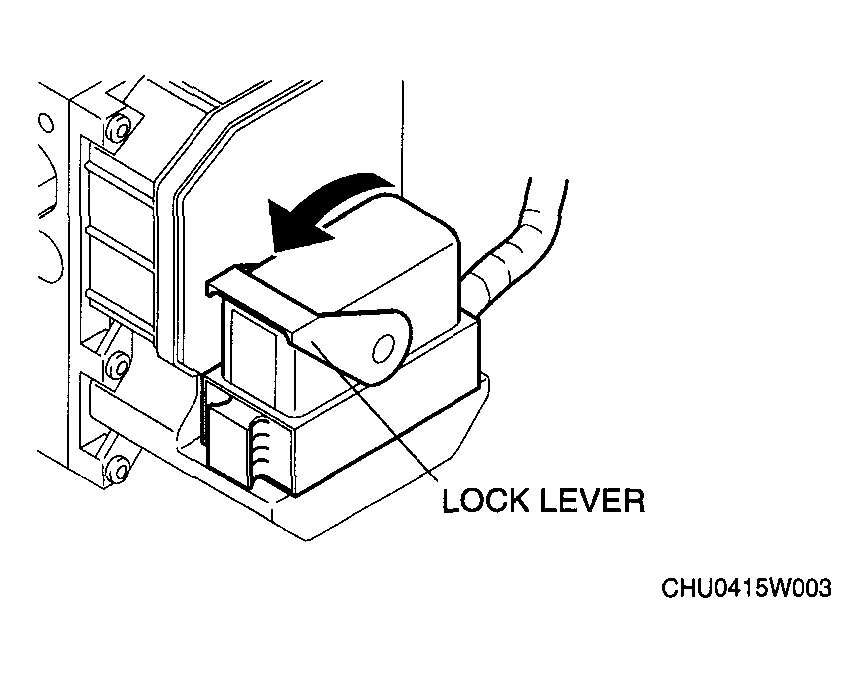

    Fig 1: Installing DSC HU/CM Connector
    G04563431Courtesy of MAZDA MOTORS CORP.
