Front Abs Wheel-Speed Sensor Removal/Installation

NOTE:

If there is any malfunction in the front ABS wheel-speed sensor unit, replace the wheel hub component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)

Remove the mudguard.
Remove in the order indicated in Fig 1.
Install in the reverse order of removal.

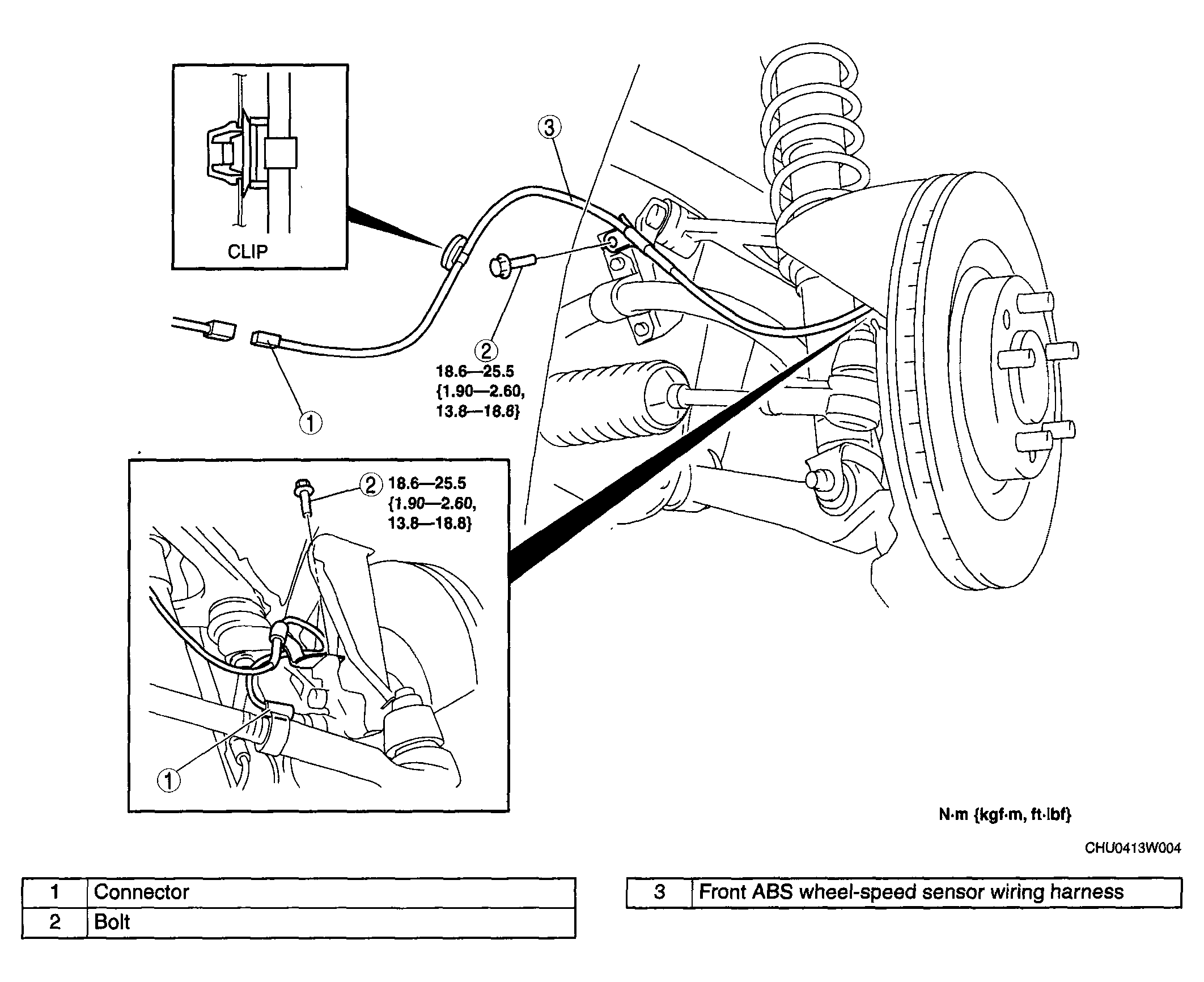

Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
