Abs HU/Cm Removal/Installation: Notes

CAUTION:
  • The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
  1. Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

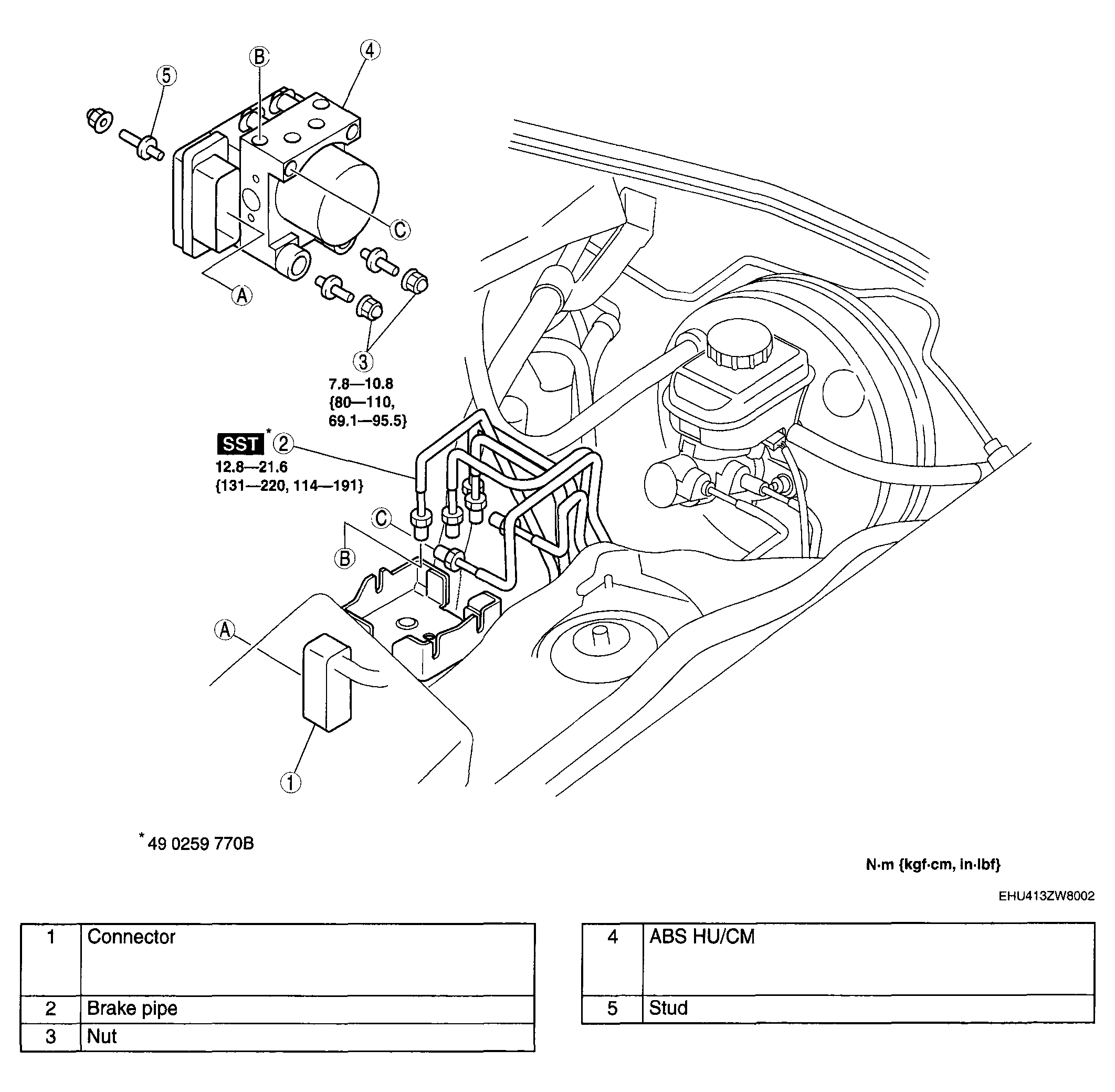

    Fig 1: Removing/Installing ABS HU/CM With Torque Specifications
    G04563413Courtesy of MAZDA MOTORS CORP.
