Dynamic Stability Control Location Index

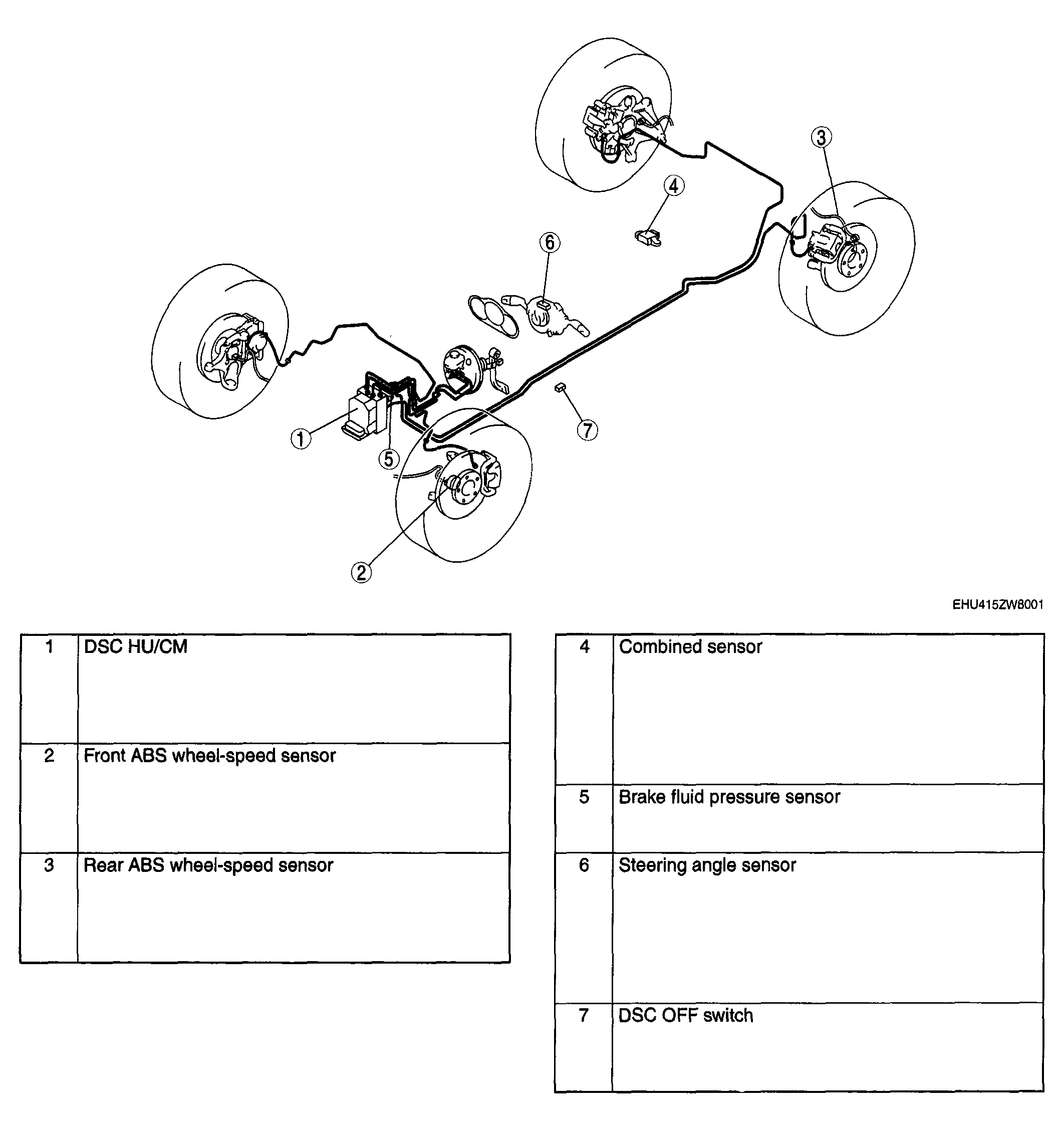

Fig 1: Identifying Dynamic Stability Control System Components

G04563424

Courtesy of MAZDA MOTORS CORP.
