Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outer mirror switch.

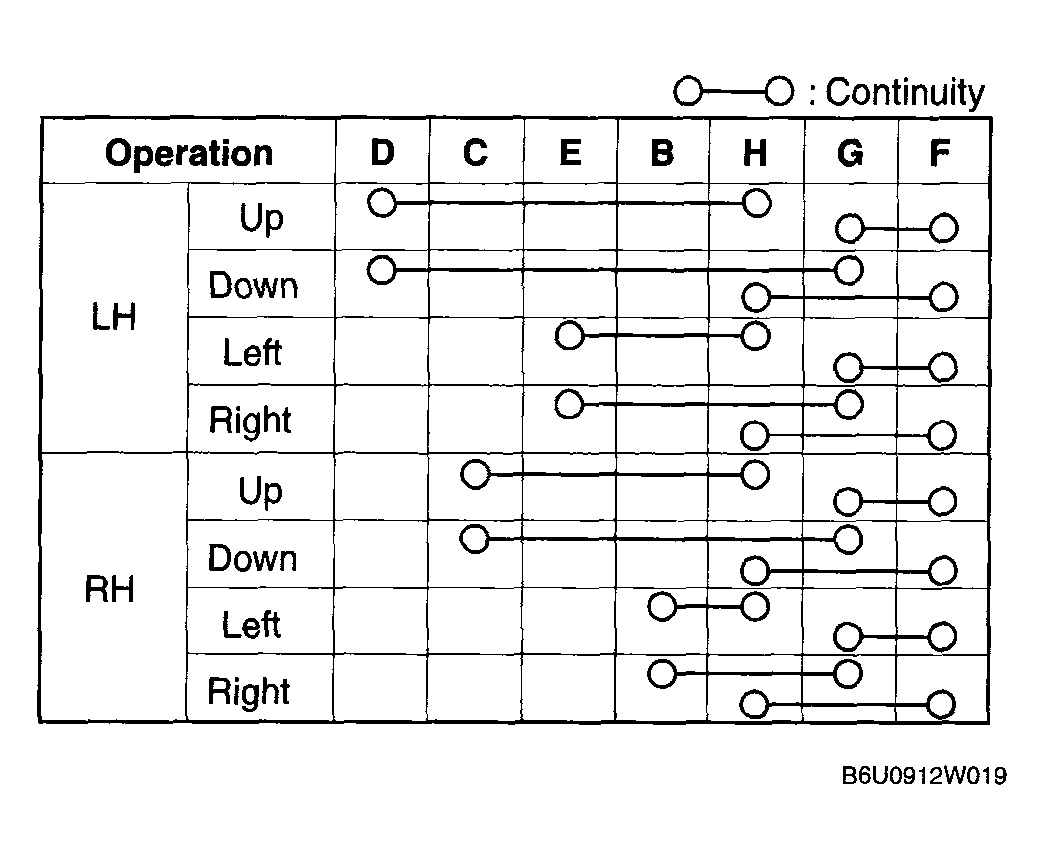

      Fig 1: Power Outer Mirror Switch Continuity Chart
      G04564287Courtesy of MAZDA MOTORS CORP.

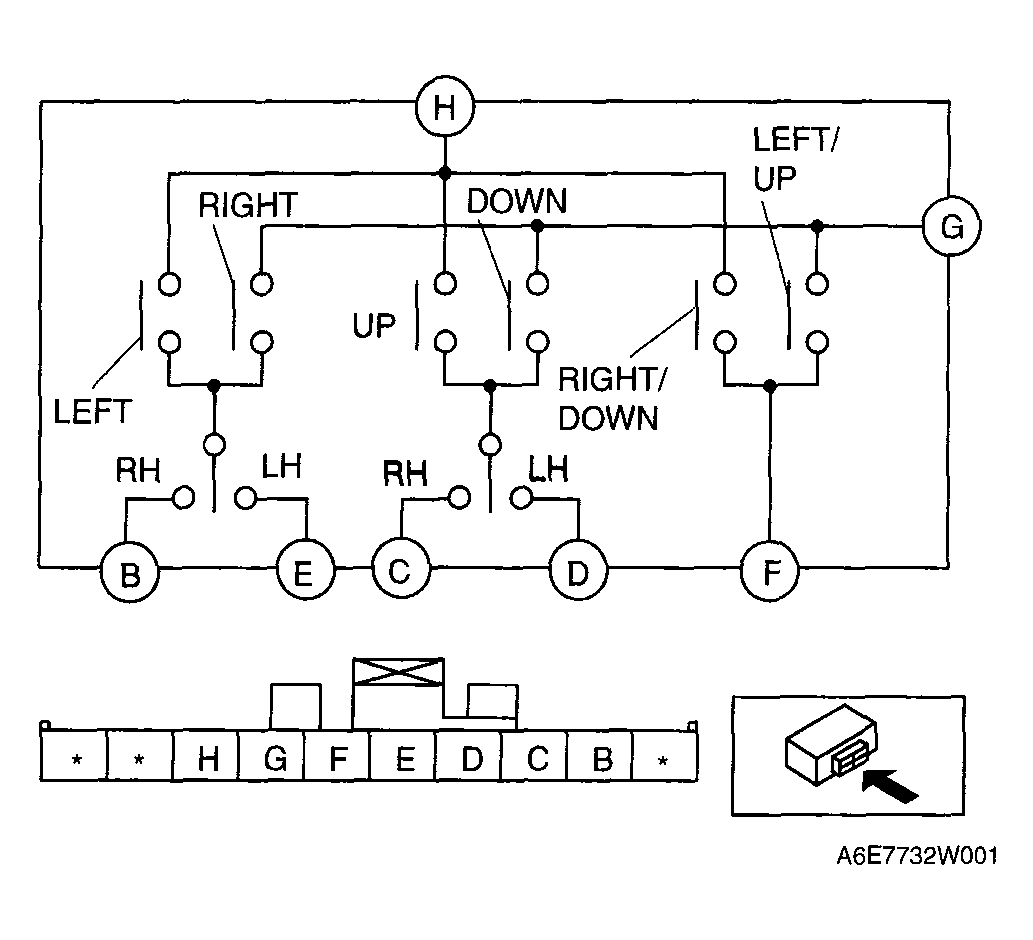

      Fig 2: Power Outer Mirror Switch Connector Terminals
      G04564288Courtesy of MAZDA MOTORS CORP.
