Outer Mirror Glass Disassembly Note

  1. Press area A of the mirror glass so that area B moves outward.

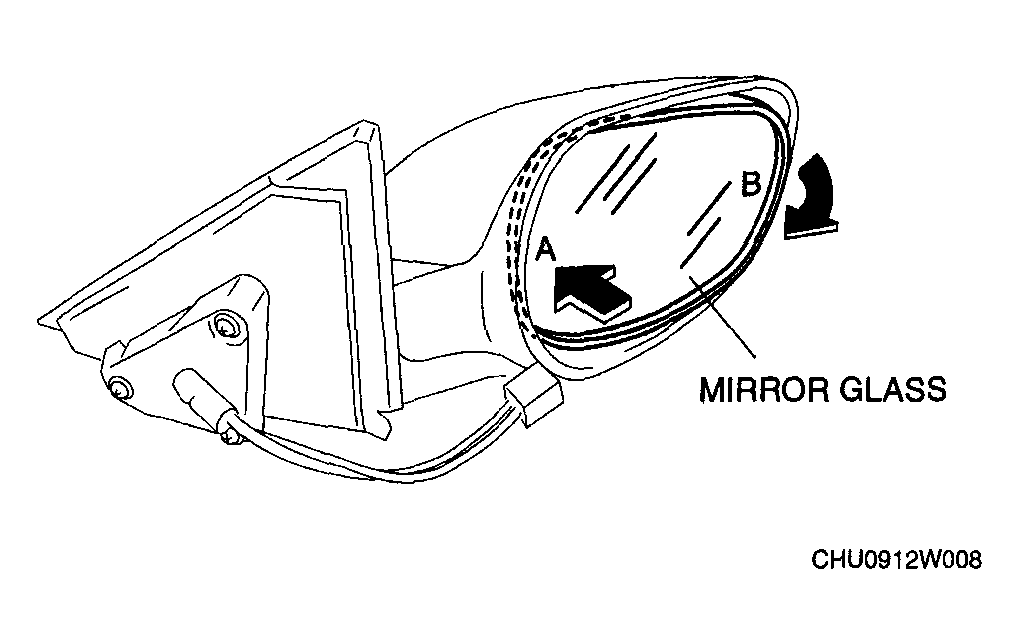

    Fig 1: Pressing Area A Of Mirror Glass So That Area B Moves Outward
    G04564279Courtesy of MAZDA MOTORS CORP.
  2. Detach pin A while lifting up the inside of the mirror glass holder.
  3. Pull out the mirror glass holder and detach pins B.
  4. Remove the mirror glass holder and the mirror glass as a single unit.

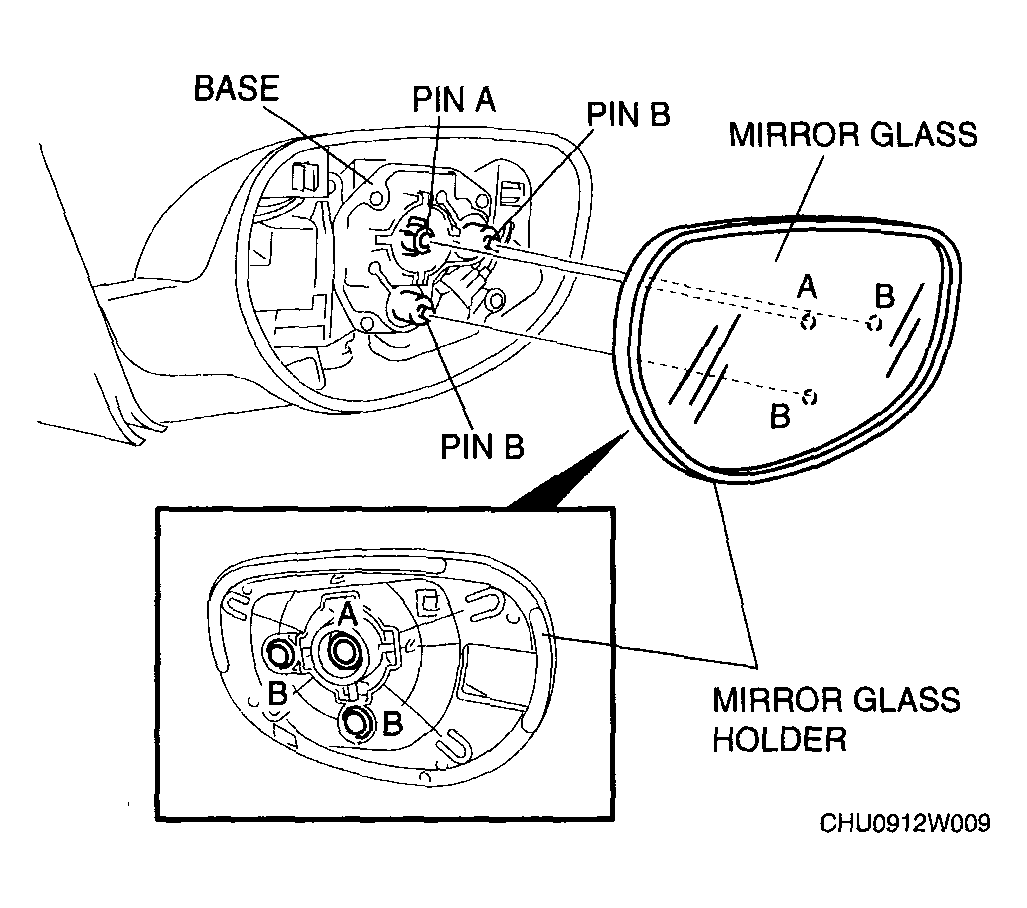

    Fig 2: Identifying Outer Mirror Glass Assembly
    G04564280Courtesy of MAZDA MOTORS CORP.
