Relay Location

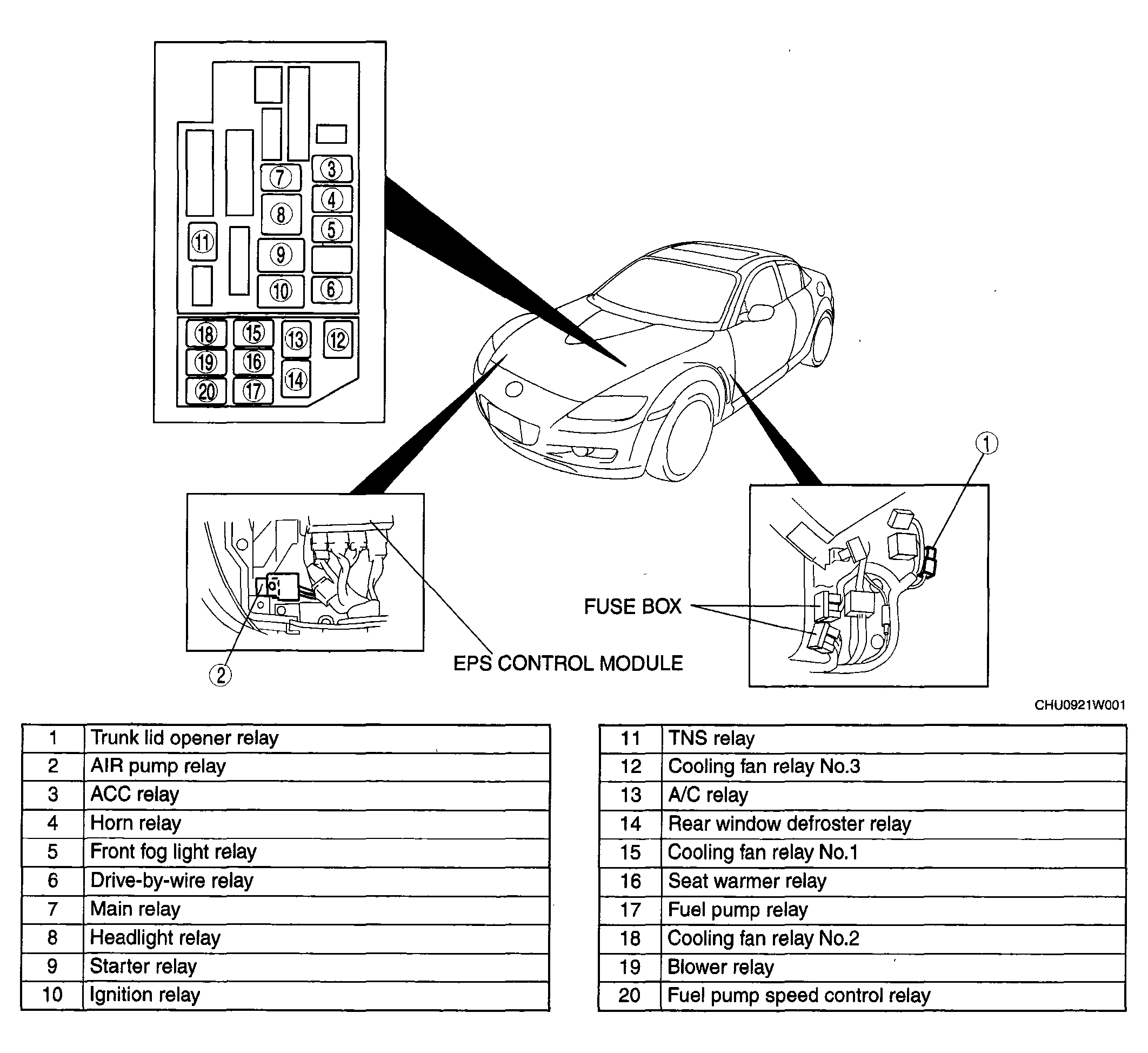

Fig 1: Identifying Relay Component Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
