Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the key reminder switch connector.
  4. Remove the key reminder switch.
  5. Install in the reverse order of removal.

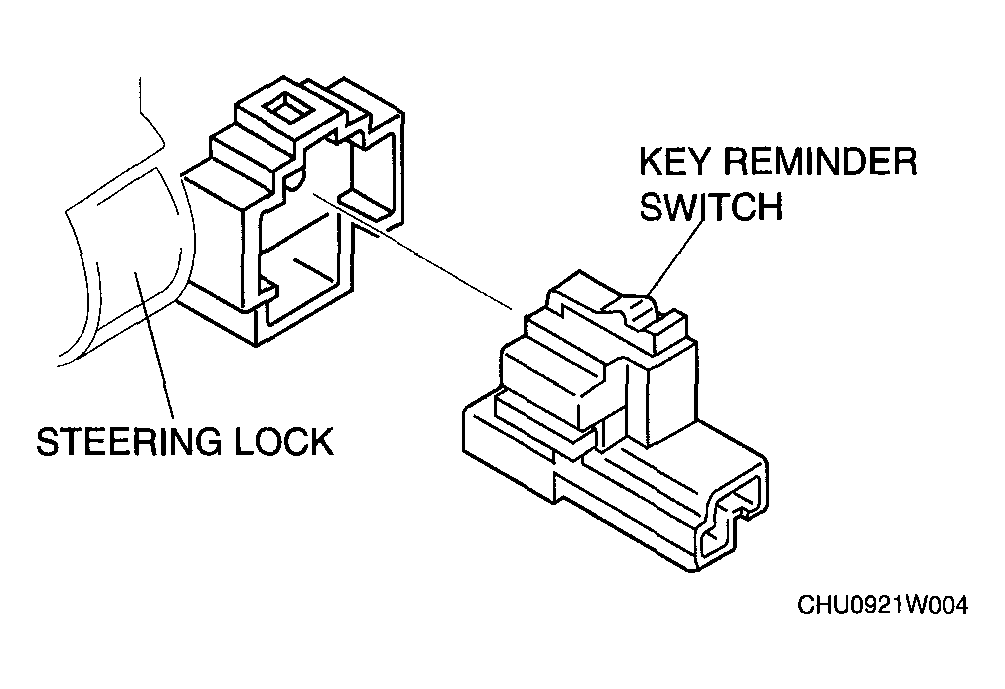

    Fig 1: Removing Key Reminder Switch
    G04564650Courtesy of MAZDA MOTORS CORP.
