Request Switch Removal/Installation[With Advanced Keyless System]: Driver-side/passenger-side

1. Disconnect the negative battery cable.
2. Remove the front door trim. (see FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Remove the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
4. Remove the screws A, then remove the handle seat and plate.
5. Remove screw B, then remove the request switch.

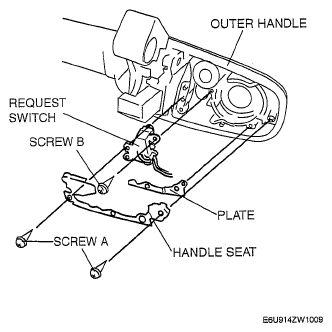

Fig 1: Identifying Request Switch Remove/Install Components

Courtesy of MAZDA MOTORS CORP.
