Front Buckle Removal/Installation

  1. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

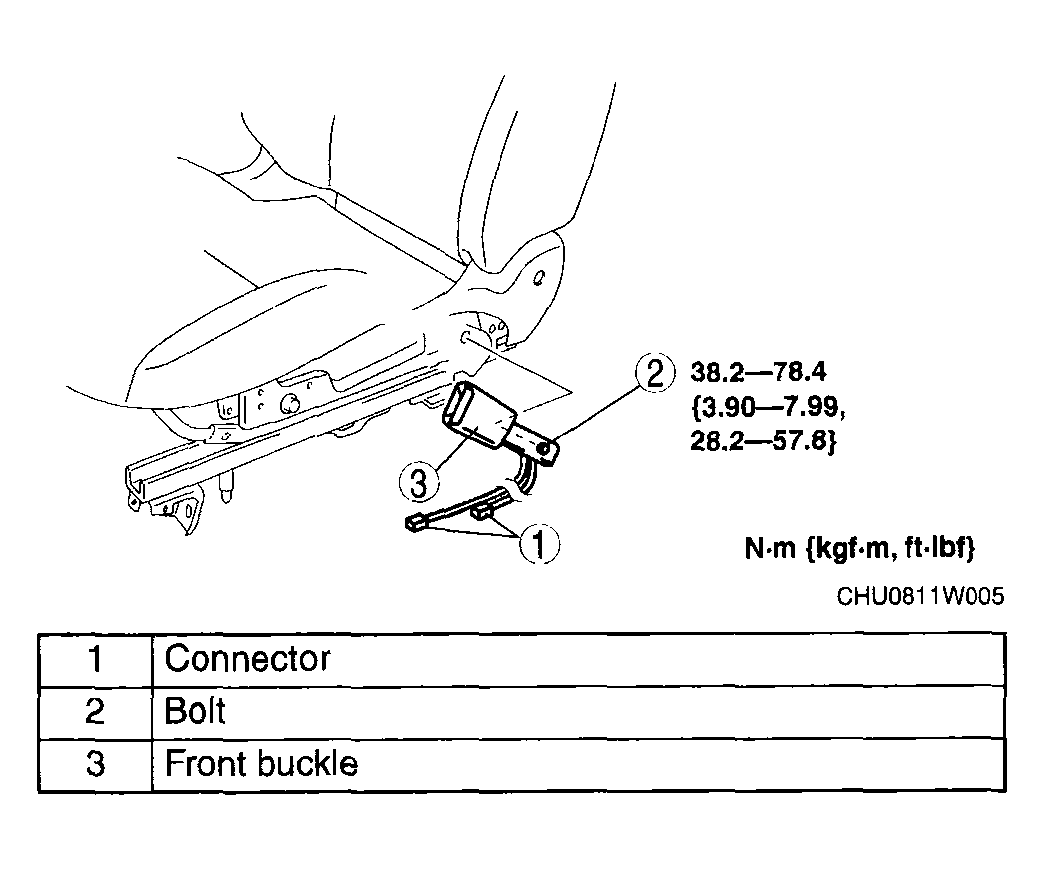

    Fig 1: Removing & Installing Front Buckle With Torque Specifications
    G04564104Courtesy of MAZDA MOTORS CORP.
