Dynamic Stability Control System Wiring Diagram

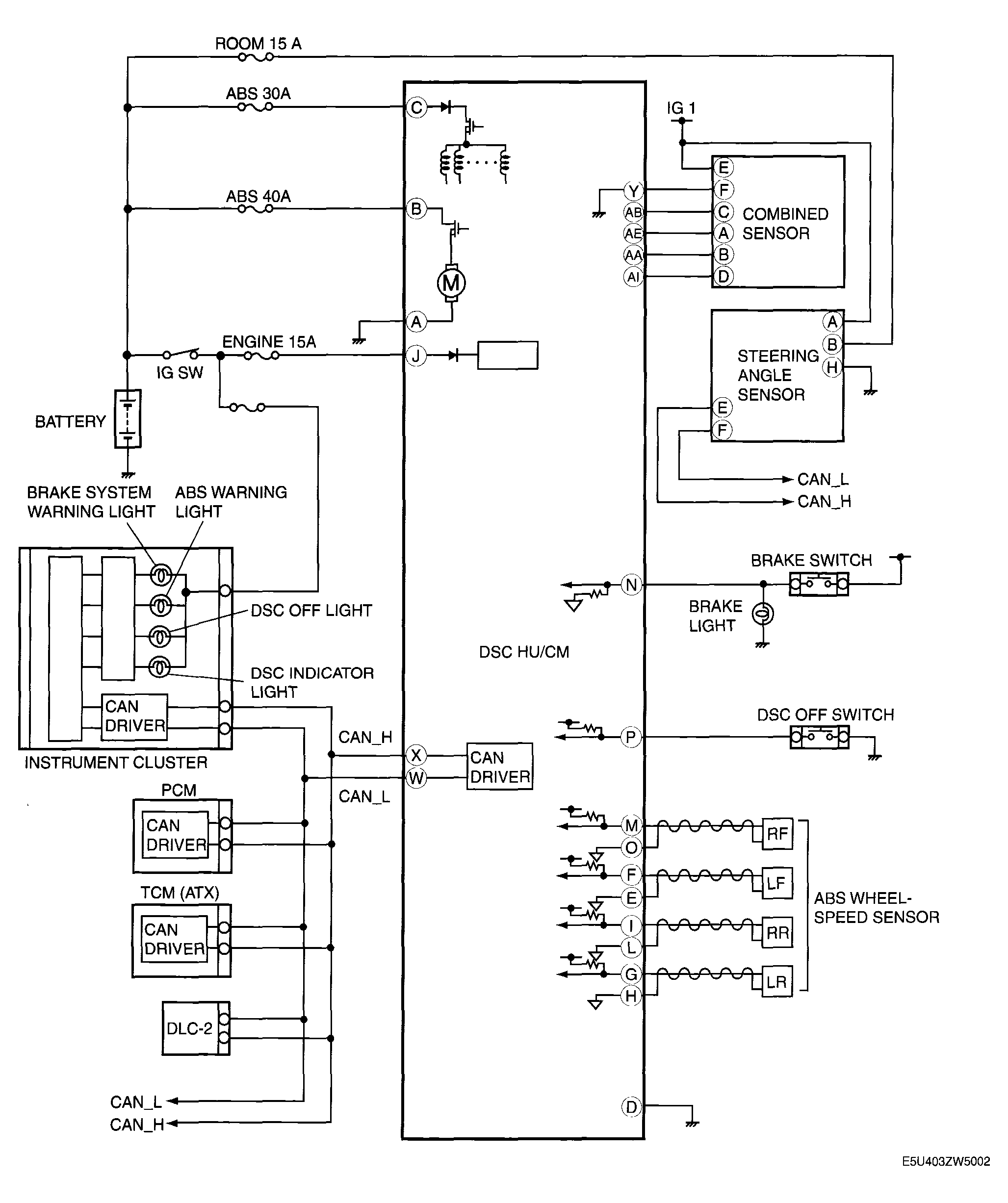

Fig 1: Dynamic Stability Control System Wiring Diagram

G04323069

Courtesy of MAZDA MOTORS CORP.
