Without Exterior Open function
- Measure the voltage at each terminal (other than terminals A, H and G).
- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "inspection item(s)" and related wiring harnesses.
- Disconnect the negative battery cable.
- Inspect the power window main switch connector for continuity at terminal G.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

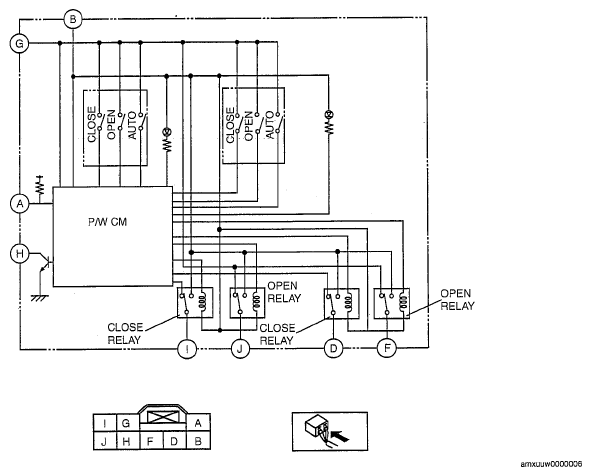

POWER WINDOW MAIN SWITCH INSPECTION CHART (WITHOUT EXTERIOR OPEN FUNCTION)
| Terminal | Signal name | Connected to | Measured condition | Voltage (V)/Continuity | Inspection item (s) |
|---|---|---|---|---|---|
| B | IG 1 | IG KEY1 20 A fuse | Ignition switch is at ON position | B+ |
|
| Ignition switch is at LOCK position | 1.0 or less | ||||
| D | Close output | Power window motor | While door glass is opening | 1.0 or less |
|
| While door glass is closing | B+ | ||||
| F | Open output | Power window motor | While door glass is opening | B+ |
|
| While door glass is closing | 1.0 or less | ||||
| G | GND | Body ground | Under any condition: Inspect for continuity to ground | Continuity detected |
|
| I | Close output | Power window motor | While door glass is opening | 1.0 or less |
|
| While door glass is closing | B+ | ||||
| J | Open output | Power window motor | While door glass is opening | B+ |
|
| While door glass is closing | 1.0 or less | ||||
| A | Communicati on | Power retractable hardtop | Under any condition: Inspect for continuity to power retractable hardtop | Continuity detected |
|
| H | Communicati on | Power retractable hardtop | Under any condition: Inspect for continuity to power retractable hardtop | Continuity detected |
|
