Power Retractable Hardtop Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the service hole cover (LH) of the back trim.
  4. Partially peel back the power retractable hardtop cover.
  5. Remove the roof hook cable case.
    Fig 1: Cable Case And Nut With Torque Specifications
    G04931456Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.

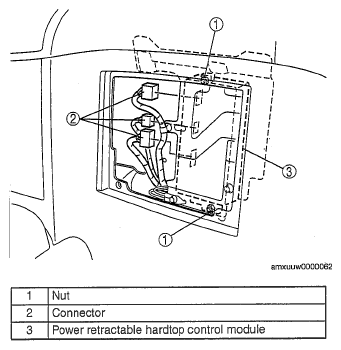

    Fig 2: Identifying Power Retractable Hardtop Control Module Components
    G04931457Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
