MX-5 Miata SV
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting (Advanced Keyless System)
>>
Keyless Entry System Wiring Diagram[Advanced Keyless System]
Keyless Entry System Wiring Diagram[Advanced Keyless System]

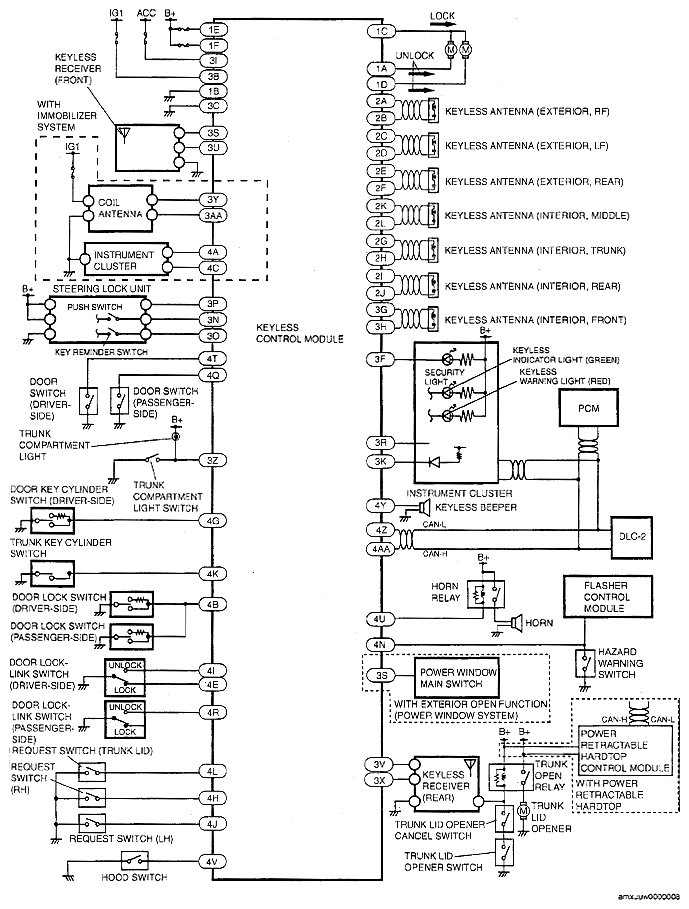

Fig 1: Keyless Entry System Wiring Diagram [Advanced Keyless System]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
