Key Cylinder (Without Advanced Keyless System) Removal Note

  1. Turn the key to the ACC position.
  2. Push the pin and remove the outer cylinder.

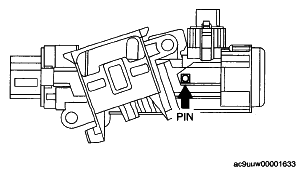

    Fig 1: Identifying Pin
    G04970464Courtesy of MAZDA MOTORS CORP.
