Steering Gear And Linkage Disassembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.
  1. Disassemble in the order indicated in the table.

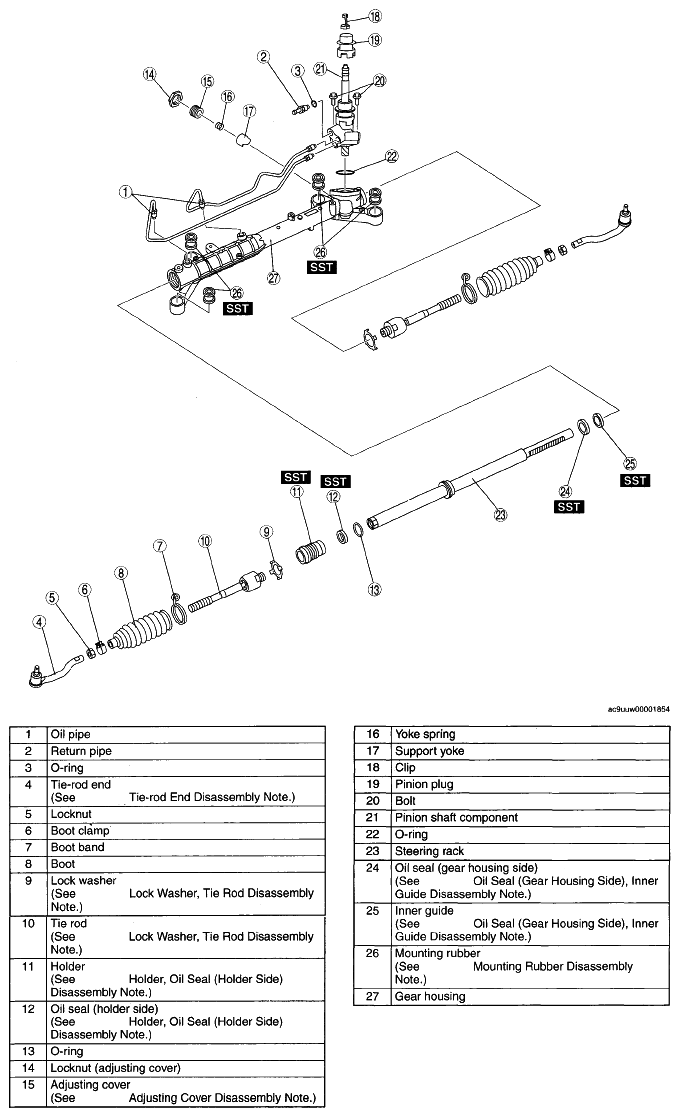

Fig 1: Exploded View Of Steering Gear And Linkage Components
G04970471Courtesy of MAZDA MOTORS CORP.
