Power Steering Oil Pump Removal/Installation: Notes

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grill. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  4. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
  5. Remove the right side splashing shield.
  6. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZI-3.5] .)
  7. Remove in the order indicated in the table.
  8. Install in the reserve order of removal.

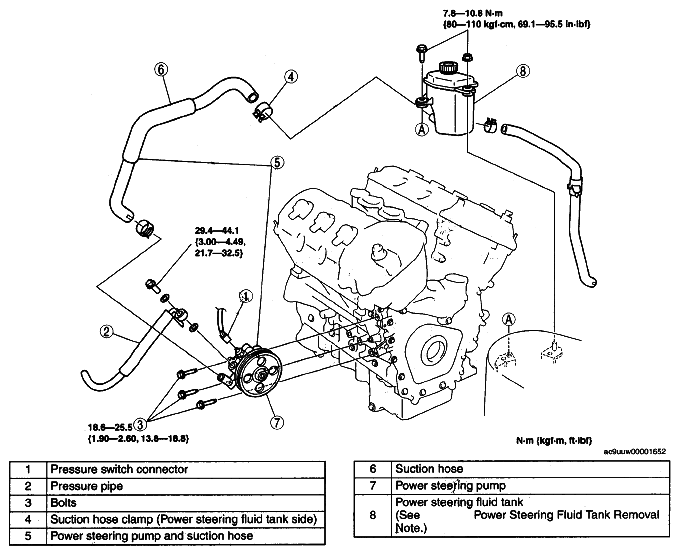

    Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
    G04970494Courtesy of MAZDA MOTORS CORP.
