Shaft Component Disassembly Note

  1. Tap out the shaft component from the front pump body using a plastic hammer.

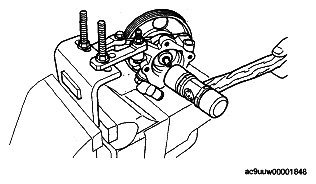

    Fig 1: Tapping Out Shaft Component From Front Pump Body
    G04970498Courtesy of MAZDA MOTORS CORP.
