Rotor Assembly Note

  1. Install to the front pump body so that area B of the groove is on the rear pump body side as shown in the figure.

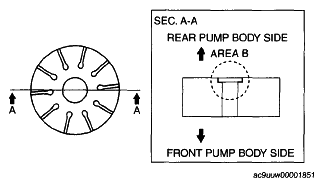

    Fig 1: Installing Rotor To Front Pump Body And Rear Pump Body
    G04970501Courtesy of MAZDA MOTORS CORP.
