Rear Door Glass Removal/Installation

  1. Adjust the door glass position as shown in the figure.
  2. Disconnect the negative battery cable.
  3. Remove the inner sail garnish. (See INNER SAIL GARNISH REMOVAL/INSTALLATION .)
  4. Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
  5. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  6. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  7. Remove the bolts.
    Fig 1: Identifying Rear Door Glass Adjusting Position
    G04971105Courtesy of MAZDA MOTORS CORP.

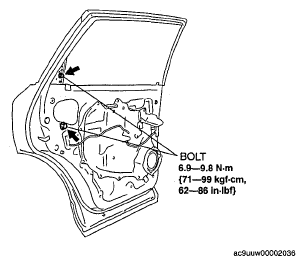

    Fig 2: Locating Rear Door Glass Bolts With Torque Specifications
    G04971106Courtesy of MAZDA MOTORS CORP.
  8. Remove the rear door glass guide and glass run channel as a single unit.

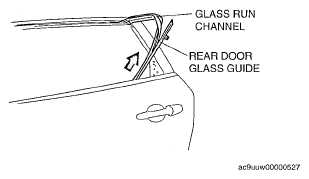

    Fig 3: Identifying Rear Door Glass Guide And Glass Run Channel
    G04971107Courtesy of MAZDA MOTORS CORP.
  9. Remove the hole cover.
  10. Remove the bolt.
  11. Lift the rear door glass up and remove it in the direction of the arrow.
  12. Install in the reverse order of removal.
    NOTE:
    • When installing the rear door glass, align the glass edge with the glass run channel by hand through the speaker installation hole.

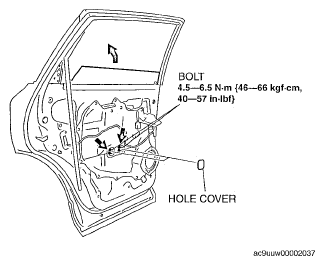

    Fig 4: Rear Door Glass Hole Cover And Bolt With Torque Specifications
    G04971108Courtesy of MAZDA MOTORS CORP.
