Home >> Mazda >> 2007 >> CX-9 Touring, 3.5 C, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Glass/Windows/Mirrors Location Index

Glass/Windows/Mirrors Location Index

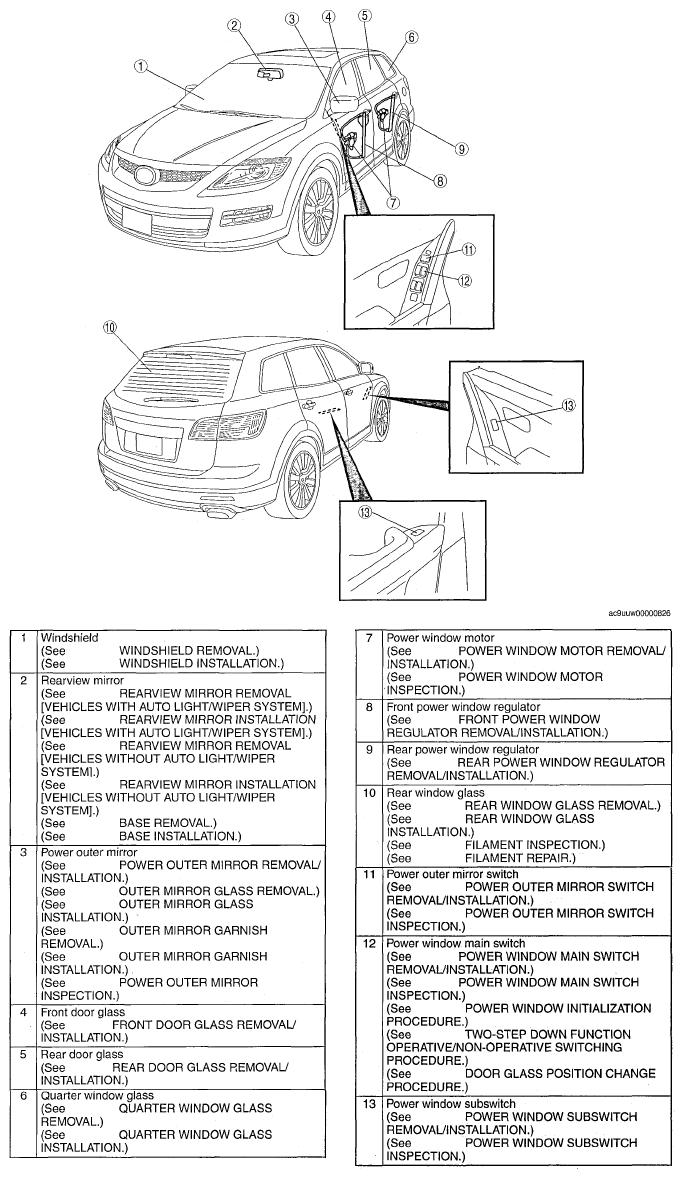

Fig 1: Identifying Glass/Windows/Mirrors Components

G04971101

Courtesy of MAZDA MOTORS CORP.
