Home >> Mazda >> 2007 >> CX-9 Touring, 3.5 C, AWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Power Systems >> Relay Location

Relay Location

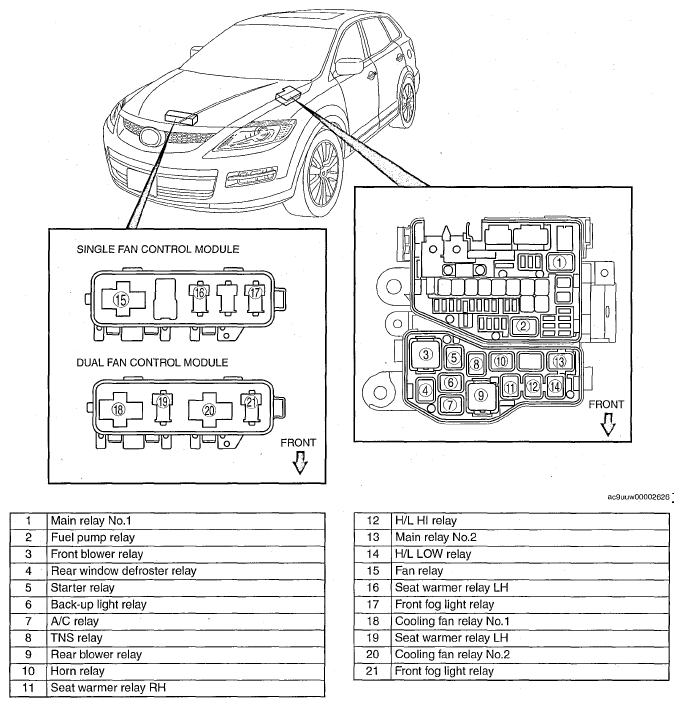

Fig 1: Identifying Relay Locations

G04971681
