Front Console Box Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION .)
    3. Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION .)
  3. Remove the screw.
  4. Detach clip A and hooks by pulling them in the direction of the arrow.
  5. Disconnect the connector.
  6. Remove the front console box.
  7. Install in the reverse order of removal.

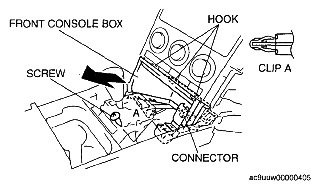

    Fig 1: Identifying Front Console Box And Connector
    G04971419Courtesy of MAZDA MOTORS CORP.
