Liftgate Lock Striker Removal/Installation

  1. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
  2. Remove the seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION .)
  3. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  4. Remove the bolts, then remove the liftgate lock striker.
  5. Install in the reverse order of removal.
  6. Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)

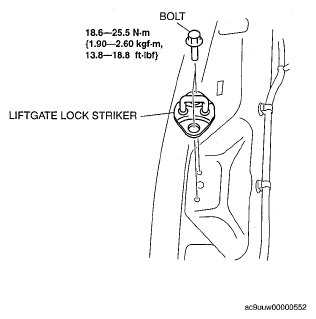

    Fig 1: Liftgate Lock Striker And Bolt With Torque Specifications
    G04971255Courtesy of MAZDA MOTORS CORP.
