Liftgate latch switch

  1. When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.
    Fig 1: Pressing Latch Lever
    G04971258Courtesy of MAZDA MOTORS CORP.
  2. Verify that the continuity is as indicated in the table.
    • If not as indicated in the table, replace the liftgate latch and lock actuator.

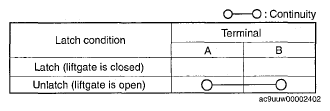

Fig 2: Liftgate Latch And Lock Actuator Continuity Reference Table
G04971259Courtesy of MAZDA MOTORS CORP.
Fig 3: Identifying Liftgate Latch And Lock Actuator Connector Terminals
G04971260Courtesy of MAZDA MOTORS CORP.
